896-092 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 92POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Card Type	Contact Material	Mounting Type	Contact Finish	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Color	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Read Out	Contact Type	Pitch	Pitch	Gender	Number of Positions
EDAC Inc. 896-092-522-212	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Copper Alloy	Through Hole	Gold	Solder	125 °C	-40 C	2	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	46	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Dual	Cantilever	3.18 mm	0.125 in	Female	92
EDAC Inc. 896-092-520-212	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Copper Alloy	Through Hole	Gold	Solder	125 °C	-40 C	2	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	46	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Dual	Cantilever	3.18 mm	0.125 in	Female	92
EDAC Inc. 896-092-521-803	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Copper Alloy	Through Hole	Gold	Solder	125 °C	-40 C	2	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	46	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Dual	Cantilever	3.18 mm	0.125 in	Female	92
EDAC Inc. 896-092-540-212	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Copper Alloy	Through Hole	Gold	Wire Wrap	125 °C	-40 C	2	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	46	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Dual	Cantilever	3.18 mm	0.125 in	Female	92
EDAC Inc. 896-092-522-202	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Copper Alloy	Through Hole	Gold	Solder	125 °C	-40 C	2	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	46	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Dual	Cantilever	3.18 mm	0.125 in	Female	92
EDAC Inc. 896-092-522-804	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Copper Alloy	Through Hole	Gold	Solder	125 °C	-40 C	2	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	46		0.156 "	3.96 mm	Dual	Cantilever	3.18 mm	0.125 in	Female	92
EDAC Inc. 896-092-522-807	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Copper Alloy	Through Hole	Gold	Solder	125 °C	-40 C	2	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	46	M3 Threaded Insert Top Mount Opening			Dual	Cantilever	3.18 mm	0.125 in	Female	92

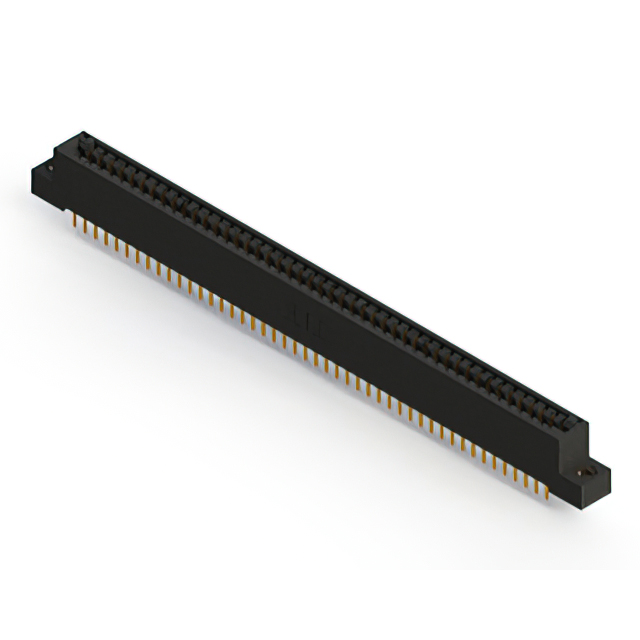

EDAC Inc. 896-092-521-208	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Copper Alloy	Through Hole	Gold	Solder	125 °C	-40 C	2	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	46	4-40 Flush Mount Threaded Insert Top Opening			Dual	Cantilever	3.18 mm	0.125 in	Female	92
EDAC Inc. 896-092-500-212	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Copper Alloy	Through Hole	Gold	Solder Eyelet(s)	125 °C	-40 C	2	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	46	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Dual	Cantilever	3.18 mm	0.125 in	Female	92
EDAC Inc. 896-092-500-804	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Copper Alloy	Through Hole	Gold	Solder Eyelet(s)	125 °C	-40 C	2	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	46		0.156 "	3.96 mm	Dual	Cantilever	3.18 mm	0.125 in	Female	92
