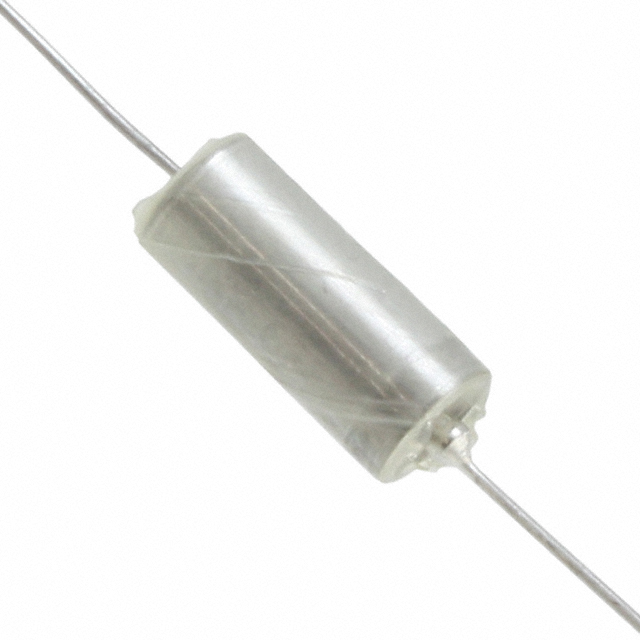

M39003/01 Series

Manufacturer: KEMET

Catalog

CAPACITORS ROHS COMPLIANT: NO

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Qualification	Failure Rate	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Type	Mounting Type	Grade	Capacitance	Package / Case	Features	Manufacturer Size Code	Voltage - Rated	Tolerance	Size / Dimension [x]	Size / Dimension [x]
KEMET M39003/01-6053	0.185 Dia	4.7 mm	0.61 L	15.49 mm	MIL-PRF-39003/1	B	-55 C	125 °C	2 Ohms	Hermetically Sealed	Through Hole	Military	22 µF	Axial	High Reliability	B	15 V	10 %
KEMET M39003/01-2511	0.185 Dia	4.7 mm	0.61 L	15.49 mm	MIL-PRF-39003/1	P (0.1%)	-55 C	125 °C	2 Ohms	Hermetically Sealed	Through Hole	Military	22 µF	Axial	High Reliability	B	15 V	10 %
KEMET M39003/01-6078	0.185 Dia	4.7 mm	0.61 L	15.49 mm	MIL-PRF-39003/1	B	-55 C	125 °C	2.9 Ohm	Hermetically Sealed	Through Hole	Military	10 µF	Axial	High Reliability	B	20 V	10 %
KEMET M39003/01-2854	0.289 in	7.34 mm			MIL-PRF-39003/1	R (0.01%)	-55 C	125 °C	1.6 Ohm	Hermetically Sealed	Through Hole	Military	10 µF	Axial	High Reliability		50 VDC	10 %	0.822 in	20.88 mm
KEMET M39003/01-2368	0.185 Dia	4.7 mm	0.61 L	15.49 mm	MIL-PRF-39003/1	M (1%)	-55 C	125 °C	2.5 Ohm	Hermetically Sealed	Through Hole	Military	4.7 µF	Axial	High Reliability	B	50 VDC	10 %
KEMET M39003/01-2289	0.185 Dia	4.7 mm	0.61 L	15.49 mm	MIL-PRF-39003/1	M (1%)	-55 C	125 °C	2.3 Ohm	Hermetically Sealed	Through Hole	Military	15 µF	Axial	High Reliability	B	20 V	10 %
KEMET M39003/01-7108	0.185 Dia	4.7 mm	0.61 L	15.49 mm	MIL-PRF-39003/1	C	-55 C	125 °C	2.5 Ohm	Hermetically Sealed	Through Hole	Military	6.8 µF	Axial	High Reliability	B	35 V	10 %
