CAB426RF Series
Manufacturer: GCT
Beta
⌘K

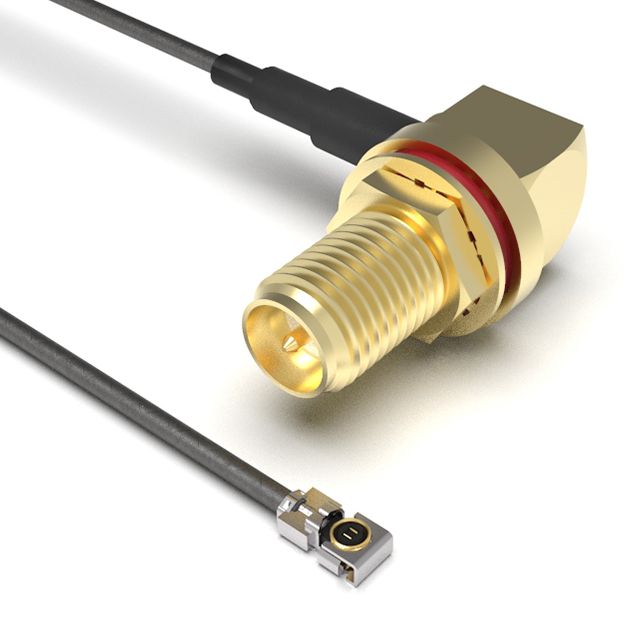

COAX CBL RP-SMA TO MHF4L LK 7.8"
| Part | Overall Impedance | 1st Connector | Cable Impedance | Length | Length | 2nd Connector Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | 2nd Contact Gender | Color | 1st Contact Gender | Frequency - Max [Max] | Ingress Protection | 1st Connector Mounting Feature | Features | Cable Type | Cable Type [diameter] | 1st Connector Mounting Type | Style | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50 Ohms | RP-SMA Jack Right Angle | 50 Ohms | 200 mm | 7.874 in | Free Hanging (In-Line) | 85 °C | -40 C | Female | Black | Male | 6000 MHz | IP67/IP68 | Bulkhead - Front Side Nut | IP Rated Unmated | Coaxial Cable | 1.37 mm | Panel Mount | RP-SMA to I-PEX MHF4L LK | ||
50 Ohms | RP-SMA Jack Right Angle | 50 Ohms | 200 mm | 7.874 in | Free Hanging (In-Line) | 85 °C | -40 C | Female | Black | Male | 6000 MHz | IP67/IP68 | Bulkhead - Front Side Nut | IP Rated Unmated | Coaxial Cable | 1.37 mm | Panel Mount | RP-SMA to IPEX MHF4L LK | IPEX MHF4L LK (Locking) Plug Right Angle |
