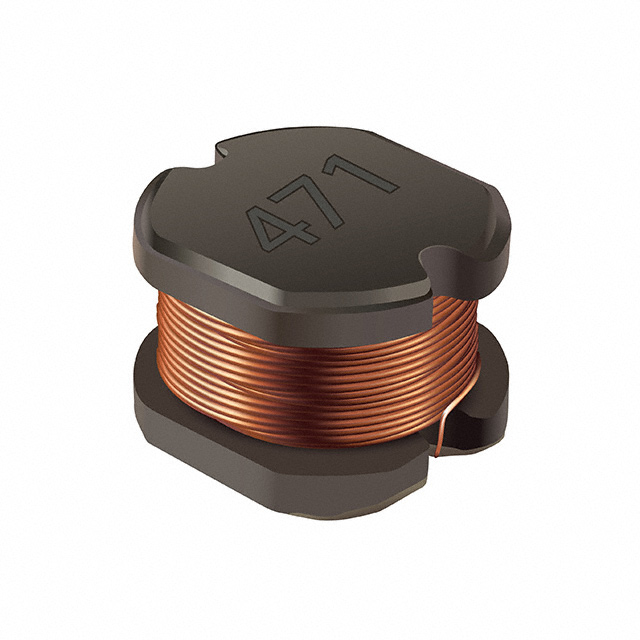

SDE0805A Series

Catalog

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SDE0805A SERIES, 330 H, 10%, UNSHIELDED, 1.2 OHM, 650 MA

Part	Current Rating (Amps)	Current - Saturation (Isat)	Inductance Frequency - Test	Mounting Type	Ratings	Shielding	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Inductance	Type	Package / Case	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	DC Resistance (DCR)
Bourns Inc. SDE0805A-331K	650 mA	500 mA	1 kHz	Surface Mount	AEC-Q200	Unshielded	1.2 Ohm	4.9 MHz	330 µH	Drum Core Wirewound	Nonstandard	10 %	0.217 "	5.5 mm	7.8 mm	7 mm	0.307 "	0.276 in	125 °C	-40 C	Ferrite
Bourns Inc. SDE0805A-220M	2.35 A	1.8 A	1 MHz	Surface Mount	AEC-Q200	Unshielded		16.5 MHz	22 µH	Drum Core Wirewound	Nonstandard	20 %	0.217 "	5.5 mm	7.8 mm	7 mm	0.307 "	0.276 in	125 °C	-40 C	Ferrite	110 mOhm
Bourns Inc. SDE0805A-271K	700 mA	550 mA	1 kHz	Surface Mount	AEC-Q200	Unshielded	1.11 Ohm	5 MHz	270 µH	Drum Core Wirewound	Nonstandard	10 %	0.217 "	5.5 mm	7.8 mm	7 mm	0.307 "	0.276 in	125 °C	-40 C	Ferrite
Bourns Inc. SDE0805A-560K	1.6 A	1.2 A	1 MHz	Surface Mount	AEC-Q200	Unshielded	240 mOhm	11.5 MHz	56 µH	Drum Core Wirewound	Nonstandard	10 %	0.217 "	5.5 mm	7.8 mm	7 mm	0.307 "	0.276 in	125 °C	-40 C	Ferrite
Bourns Inc. SDE0805A-100M	3.2 A	2.6 A	1 MHz	Surface Mount	AEC-Q200	Unshielded		27.5 MHz	10 µH	Drum Core Wirewound	Nonstandard	20 %	0.217 "	5.5 mm	7.8 mm	7 mm	0.307 "	0.276 in	125 °C	-40 C	Ferrite	70 mOhm
Bourns Inc. SDE0805A-330M	2 A	1.6 A	1 MHz	Surface Mount	AEC-Q200	Unshielded		13.2 MHz	33 µH	Drum Core Wirewound	Nonstandard	20 %	0.217 "	5.5 mm	7.8 mm	7 mm	0.307 "	0.276 in	125 °C	-40 C	Ferrite	130 mOhm
Bourns Inc. SDE0805A-5R6M	4 A	3.7 A	1 MHz	Surface Mount	AEC-Q200	Unshielded	43 mOhm	34.9 MHz	5.6 µH	Drum Core Wirewound	Nonstandard	20 %	0.217 "	5.5 mm	7.8 mm	7 mm	0.307 "	0.276 in	125 °C	-40 C	Ferrite
Bourns Inc. SDE0805A-150M	2.5 A	2.2 A	1 MHz	Surface Mount	AEC-Q200	Unshielded	90 mOhm	22.5 MHz	15 µH	Drum Core Wirewound	Nonstandard	20 %	0.217 "	5.5 mm	7.8 mm	7 mm	0.307 "	0.276 in	125 °C	-40 C	Ferrite
Bourns Inc. SDE0805A-471K	0.55 A	400 mA	1 kHz	Surface Mount	AEC-Q200	Unshielded	1.7 Ohm	3.6 MHz	470 µH	Drum Core Wirewound	Nonstandard	10 %	0.217 "	5.5 mm	7.8 mm	7 mm	0.307 "	0.276 in	125 °C	-40 C	Ferrite
Bourns Inc. SDE0805A-181K	0.85 A	0.65 A	1 kHz	Surface Mount	AEC-Q200	Unshielded	710 mOhm	6.2 MHz	180 µH	Drum Core Wirewound	Nonstandard	10 %	0.217 "	5.5 mm	7.8 mm	7 mm	0.307 "	0.276 in	125 °C	-40 C	Ferrite
