R1410750 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

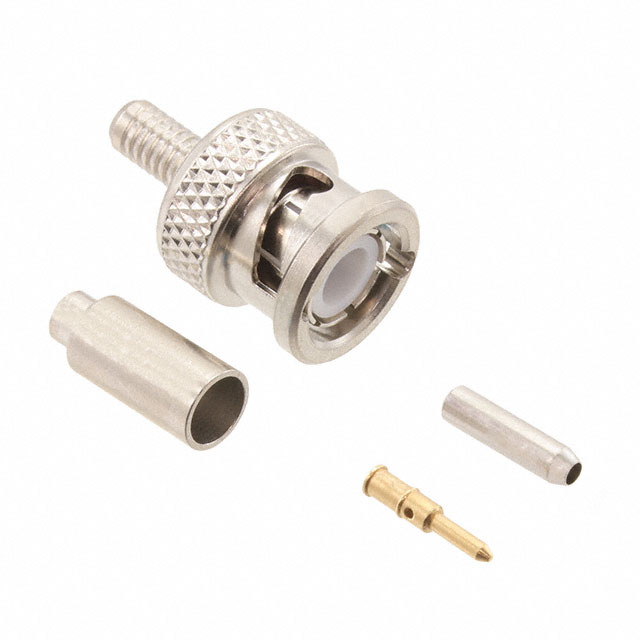

BNC M STR CR 2.6/50
| Part | Body Finish | Includes | Center Contact Plating | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Number of Ports | Contact Termination | Shield Termination | Center Contact Material | Mounting Type | Frequency - Max [Max] | Cable Group | Cable Group | Connector Type | Impedance | Connector Style | Housing Color | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nickel | 1 Braid Clamp 1 Connector 1 Contact 1 Ferrule 1 Insulator | Gold | Polytetrafluoroethylene (PTFE) | 335 V | -65 ░C | 165 °C | Brass | 500 | 1 | Crimp | Crimp | Brass | Free Hanging (In-Line) | 4 GHz | RG-174 | 316 | Plug Male Pin | 50 Ohms | BNC | Silver | Bayonet Lock |
