ED068PL Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

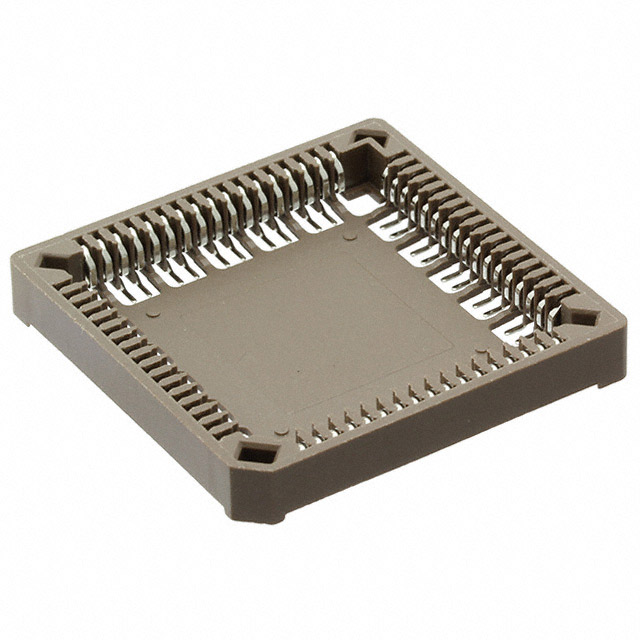

CONN SOCKET PLCC 68POS
| Part | Material Flammability Rating | Current Rating (Amps) | Contact Resistance | Contact Material - Mating | Type | Contact Material - Post | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) | Features | Pitch - Mating | Pitch - Mating | Termination | Pitch - Post | Pitch - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | UL94 V-0 | 1 A | 30 mOhm | Phosphor Bronze | PLCC | Phosphor Bronze | Surface Mount | -55 C | 105 ░C | 68 | Closed Frame | 1.27 mm | 0.05 in | Solder | 0.05 in | 1.27 mm |
