AFB1724 Series
Manufacturer: Delta Electronics
Beta
⌘K

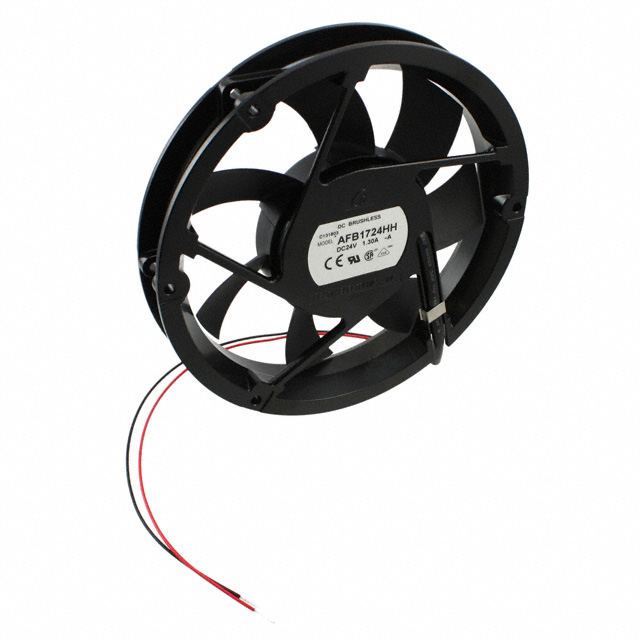

FAN AXIAL 172X25.4MM 24VDC WIRE
| Part | Material - Blade | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Material - Frame | Operating Temperature [Max] | Operating Temperature [Min] | Bearing Type | Voltage - Rated | Noise | Approval Agency | Static Pressure | Static Pressure | RPM | Power (Watts) | Size / Dimension [diameter] | Size / Dimension | Weight [custom] | Weight [custom] | Fan Type | Air Flow | Air Flow | Width [y] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 0.62 A | 12 VDC | 30 V | 80000 Hrs | Aluminum | 70 °C | -10 °C | Ball | 24 VDC | 53.5 dB | CE CSA UL VDE | 130.5 Pa | 0.524 in H2O | 3200 RPM | 14.88 W | 172 mm | Round | 0.993 lb | 450.42 g | Tubeaxial | 214.9 CFM | 6.02 m³/min | 25.4 mm | 2 Wire Leads |
