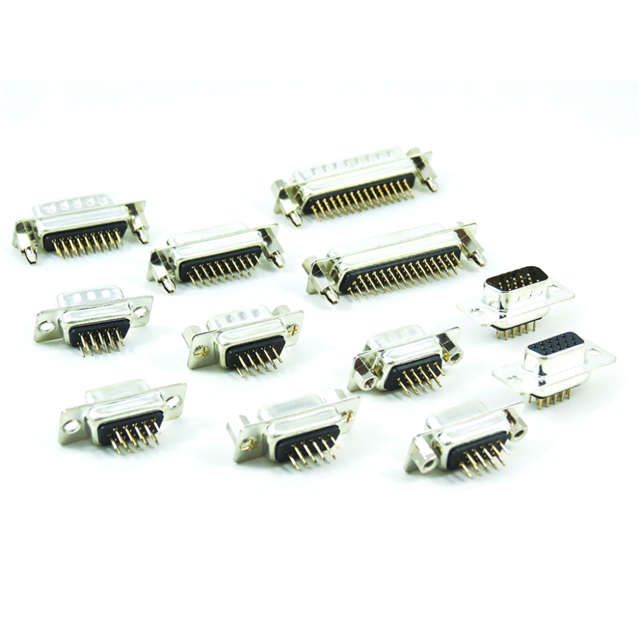

7915 Series
Manufacturer: Oupiin
Beta
⌘K
CONN D-SUB HD PLUG 15P VERT SLDR
| Part | Contact Material | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Termination | Number of Rows [custom] | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Contact Finish | Shell Material, Finish | Number of Positions | Mounting Type | Contact Type | Connector Type | Connector Style | Features | Primary Material | Shell Size, Connector Layout | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | Copper Alloy | Polyester Thermoplastic Glass Filled | Black | -55 C | 105 ░C | Flash | Solder | 3 | UL94 V-0 | (DE E) High Density | 1 | Board Side (4-40) | Gold | Metal Tin Plated | 15 | Through Hole | Signal | Plug Male Pins | D-Sub High Density | Board Lock Grounding Indents | |||
Oupiin | Copper Alloy | Polyester Thermoplastic Glass Filled | Black | -55 C | 105 ░C | Flash | Solder | 3 | UL94 V-0 | (DE E) High Density | 1 | Board Side (4-40) | Gold | Metal Tin Plated | 15 | Through Hole | Signal | Receptacle Female Sockets | D-Sub High Density | Board Lock | |||
Oupiin | Copper Alloy | Polyester Thermoplastic Glass Filled | Black | -55 C | 105 ░C | Flash | Solder | 3 | UL94 V-0 | (DE E) High Density | 1 | 4-40 Mating Side Female Screwlock | Gold | Metal Tin Plated | 15 | Through Hole | Signal | Receptacle Female Sockets | D-Sub High Density | Board Lock | Metal | ||
Oupiin | Brass | Polybutylene Terephthalate (PBT) | Black | -55 C | 105 ░C | Flash | Solder | 3 | UL94 V-0 | (DE E) High Density | 1 | Board Side (4-40) Mating Side Female Screwlock (4-40) | Gold | 15 | Through Hole | Signal | Plug Male Pins | D-Sub High Density | Board Lock Grounding Indents | ||||
Oupiin | Copper Alloy | Polyester Thermoplastic Glass Filled | Black | -55 C | 105 ░C | Flash | Solder | 3 | UL94 V-0 | Board Side (4-40) | Gold | Metal Tin Plated | 44 | Through Hole | Signal | Receptacle Female Sockets | D-Sub High Density | Board Lock | 3 | ||||
Oupiin | Copper Alloy | Polyester Thermoplastic Glass Filled | Black | -55 C | 105 ░C | Flash | Solder | 3 | UL94 V-0 | Board Side (4-40) | Gold | Metal Tin Plated | 44 | Through Hole | Signal | Plug Male Pins | D-Sub High Density | Board Lock Grounding Indents | 3 | ||||
Oupiin | Brass | Polybutylene Terephthalate (PBT) | Black | -55 C | 105 ░C | Flash | Solder | 3 | UL94 V-0 | (DE E) High Density | 1 | Board Side (4-40) Mating Side Female Screwlock (4-40) | Gold | 15 | Through Hole | Signal | Receptacle Female Sockets | D-Sub High Density | Board Lock | ||||
Oupiin | Copper Alloy | Polyester Thermoplastic Glass Filled | Black | -55 C | 105 ░C | Flash | Solder | 3 | UL94 V-0 | 2 | Board Side (4-40) | Gold | Metal Tin Plated | 26 | Through Hole | Signal | Receptacle Female Sockets | D-Sub High Density | DA A |
