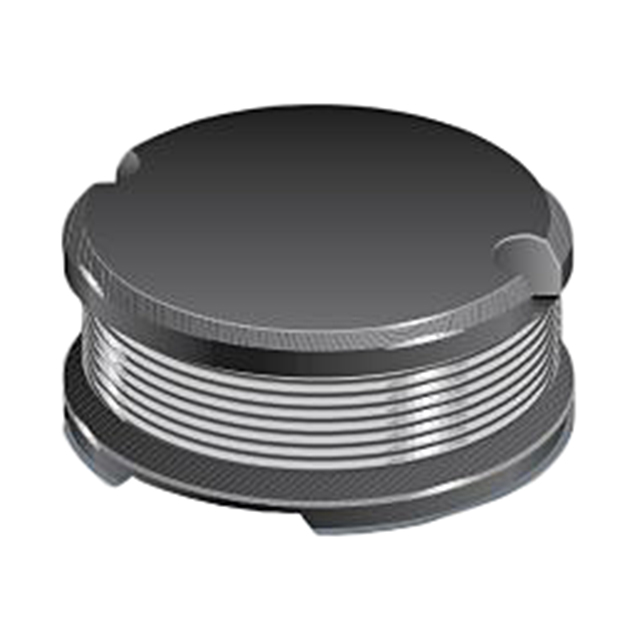

PM32 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 100UH 260MA 2.85OHM SM
| Part | DC Resistance (DCR) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Package / Case | Current Rating (Amps) | Inductance | Q @ Freq | Material - Core | Tolerance | Mounting Type | Inductance Frequency - Test | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Frequency - Self Resonant | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq [custom] | Q @ Freq [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2.85 Ohm | 125 °C | -40 C | Drum Core Wirewound | Nonstandard | 0.26 A | 100 µH | 40 796 kHz | Ferrite | 20 % | Surface Mount | 1 kHz | 0.118 " | 0.11 " | 3 mm | 2.8 mm | 10 MHz | 280 mA | Unshielded | |||
Bourns Inc. | 125 °C | -40 C | Drum Core Wirewound | Nonstandard | 0.22 A | 40 796 kHz | Ferrite | 20 % | Surface Mount | 1 kHz | 0.118 " | 0.11 " | 3 mm | 2.8 mm | 10 MHz | 250 mA | Unshielded | 3.2 Ohm | ||||
Bourns Inc. | 5.7 Ohm | 125 °C | -40 C | Drum Core Wirewound | Nonstandard | 0.17 A | 220 µH | 40 796 kHz | Ferrite | 20 % | Surface Mount | 1 kHz | 0.118 " | 0.11 " | 3 mm | 2.8 mm | 8 MHz | 190 mA | Unshielded | |||
 Bourns Inc. | 125 °C | -40 C | Drum Core Wirewound | Nonstandard | 1.5 A | 2.7 µH | 7.96 MHz 22 | Ferrite | 20 % | Surface Mount | 1 kHz | 0.118 " | 0.11 " | 3 mm | 2.8 mm | 72 MHz | 1.7 A | Unshielded | 100 mOhm | |||
Bourns Inc. | 8.6 Ohm | 125 °C | -40 C | Drum Core Wirewound | Nonstandard | 150 mA | 270 µH | 45 796 kHz | Ferrite | 20 % | Surface Mount | 1 kHz | 0.118 " | 0.11 " | 3 mm | 2.8 mm | 7 MHz | 170 mA | Unshielded | |||
Bourns Inc. | 2.1 Ohm | 125 °C | -40 C | Drum Core Wirewound | Nonstandard | 0.28 A | 82 µH | Ferrite | 20 % | Surface Mount | 1 kHz | 0.118 " | 0.11 " | 3 mm | 2.8 mm | 12 MHz | 300 mA | Unshielded | 2.52 MHz | 24 | ||
Bourns Inc. | 125 °C | -40 C | Drum Core Wirewound | Nonstandard | 900 mA | 8.2 µH | 7.96 MHz 16 | Ferrite | 20 % | Surface Mount | 1 kHz | 0.118 " | 0.11 " | 3 mm | 2.8 mm | 35 MHz | 1 A | Unshielded | 200 mOhm | |||
Bourns Inc. | 125 °C | -40 C | Drum Core Wirewound | Nonstandard | 1.4 A | 3.3 µH | Ferrite | 20 % | Surface Mount | 1 kHz | 0.118 " | 0.11 " | 3 mm | 2.8 mm | 68 MHz | 1.6 A | Unshielded | 110 mOhm | 7.96 MHz | 23 | ||
Bourns Inc. | 280 mOhm | 125 °C | -40 C | Drum Core Wirewound | Nonstandard | 750 mA | 12 µH | 2.52 MHz 15 | Ferrite | 20 % | Surface Mount | 1 kHz | 0.118 " | 0.11 " | 3 mm | 2.8 mm | 33 MHz | 850 mA | Unshielded | |||
Bourns Inc. | 660 mOhm | 125 °C | -40 C | Drum Core Wirewound | Nonstandard | 0.52 A | 22 µH | 2.52 MHz 23 | Ferrite | 20 % | Surface Mount | 1 kHz | 0.118 " | 0.11 " | 3 mm | 2.8 mm | 22 MHz | 0.65 A | Unshielded |
