R-78B Series

Catalog

NON-ISOLATED DC/DC CONVERTERS 1.5A DC/DC REG 8.0-18VIN 6.5VOUT

Part	Power (Watts)	Applications	Package / Case	Type	Voltage - Input (Min) [Min]	Efficiency	Features	Number of Outputs	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output 1

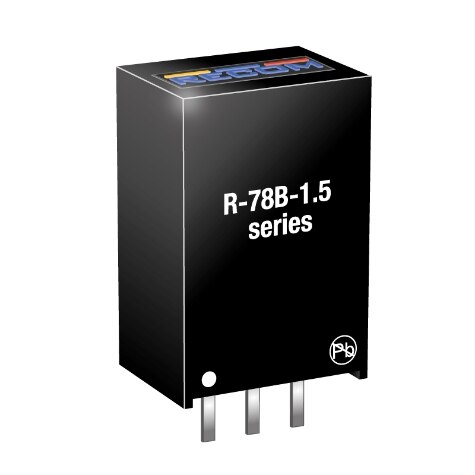

Recom Power R-78B6.5-1.5L	9.75 W	ITE (Commercial)	3-SIP Module	Linear Regulator Replacement	8 V	95 %	OTP SCP	1	1.5 A	85 °C	-40 C	17.5 mm	11.5 mm	0.69 in	0.33 in	8.5 mm	0.45 in	18 V	Right Angle Through Hole	6.5 V
Recom Power R-78B9.0-1.0L	9 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	12 V	95 %	OTP SCP	1	1 A	85 °C	-40 C	17.5 mm	11.5 mm	0.69 in	0.33 in	8.5 mm	0.45 in	32 V	Right Angle Through Hole	9 V
Recom Power R-78B1.8-1.0L	1.8 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	4.75 V	80 %	OTP SCP	1	1 A	85 °C	-40 C	17.5 mm	11.5 mm	0.69 in	0.33 in	8.5 mm	0.45 in	26 V	Right Angle Through Hole	1.8 V

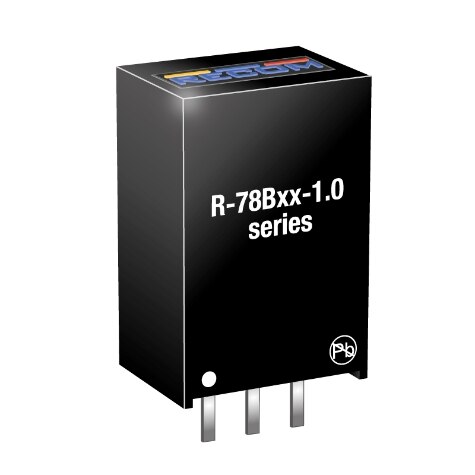

Recom Power R-78B6.5-1.0L	6.5 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	9 V	94 %	OTP SCP	1	1 A	85 °C	-40 C	17.5 mm	11.5 mm	0.69 in	0.33 in	8.5 mm	0.45 in	32 V	Right Angle Through Hole	6.5 V
Recom Power R-78B3.3-1.0L	3 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	4.75 V	89 %	OTP SCP	1	1 A	85 °C	-40 C	17.5 mm	11.5 mm	0.69 in	0.33 in	8.5 mm	0.45 in	32 V	Through Hole	3.3 V
Recom Power R-78B15-1.0L	15 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	20 V	97 %	OTP SCP	1	1 A	85 °C	-40 C	17.5 mm	11.5 mm	0.69 in	0.33 in	8.5 mm	0.45 in	32 V	Right Angle Through Hole	15 V
Recom Power R-78B9.0-1.0	9 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	12 V	95 %	OTP SCP	1	1 A	85 °C	-40 C	11.5 mm	8.5 mm	0.45 "	0.69 in	17.5 mm	0.33 "	32 V	Through Hole	9 V
Recom Power R-78B1.8-1.0	2 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	4.75 V	80 %	OTP SCP	1	1 A	85 °C	-40 C	11.5 mm	8.5 mm	0.45 "	0.69 in	17.5 mm	0.33 "	26 V	Through Hole	1.8 V
Recom Power R-78B3.3-1.5	4.95 W	ITE (Commercial)	3-SIP Module	Linear Regulator Replacement	4.75 V	91 %	OTP SCP	1	1.5 A	85 °C	-40 C	11.5 mm	8.5 mm	0.45 "	0.69 in	17.5 mm	0.33 "	18 V	Through Hole	3.3 V
Recom Power R-78B5.0-1.5L	7.5 W	ITE (Commercial)	3-SIP Module	Linear Regulator Replacement	6.5 V	94 %	OTP SCP	1	1.5 A	85 °C	-40 C	17.5 mm	11.5 mm	0.69 in	0.33 in	8.5 mm	0.45 in	18 V	Right Angle Through Hole	5 V
