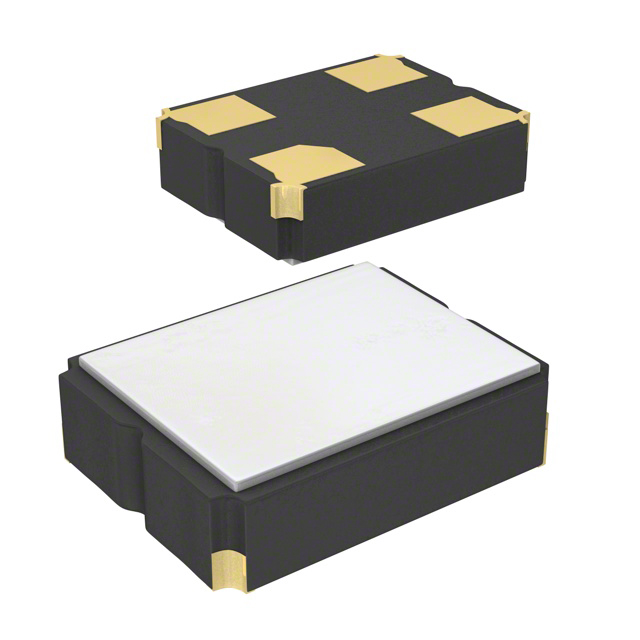

KC2016K Series

Catalog

STANDARD CLOCK OSCILLATORS 22.5792MHZ CLOCK OSC IL CMOS

Part	Current - Supply (Disable) (Max)	Current - Supply (Max) [Max]	Type	Base Resonator [custom]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Stability	Height - Seated (Max) [Max]	Height - Seated (Max)	Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Function	Mounting Type
KYOCERA AVX KC2016K22.5792C1GE00	5 µA	6 mA	XO (Standard)	Crystal	4-SMD No Lead	3.63 V	1.6 V	CMOS	85 °C	-40 C	50 ppm	0.031 in	0.8 mm	22.5792 MHz	1.6 mm	0.079 in	0.063 "	2 mm	Standby (Power Down)	Surface Mount
KYOCERA AVX KC2016K25.0000C10E00	5 µA	5 mA	XO (Standard)	Crystal	4-SMD No Lead	3.63 V	1.6 V	CMOS	70 °C	-10 °C	50 ppm	0.031 in	0.8 mm	25 MHz	1.6 mm	0.079 in	0.063 "	2 mm	Standby (Power Down)	Surface Mount
KYOCERA AVX KC2016K48.0000C1GE00		11 mA	XO (Standard)	Crystal	4-SMD No Lead	3.63 V	1.6 V	CMOS	85 °C	-40 C	50 ppm	0.031 in	0.8 mm	48 MHz	1.6 mm	0.079 in	0.063 "	2 mm	Standby (Power Down)	Surface Mount
