32S107 Series
Manufacturer: Rosenberger
Beta
⌘K

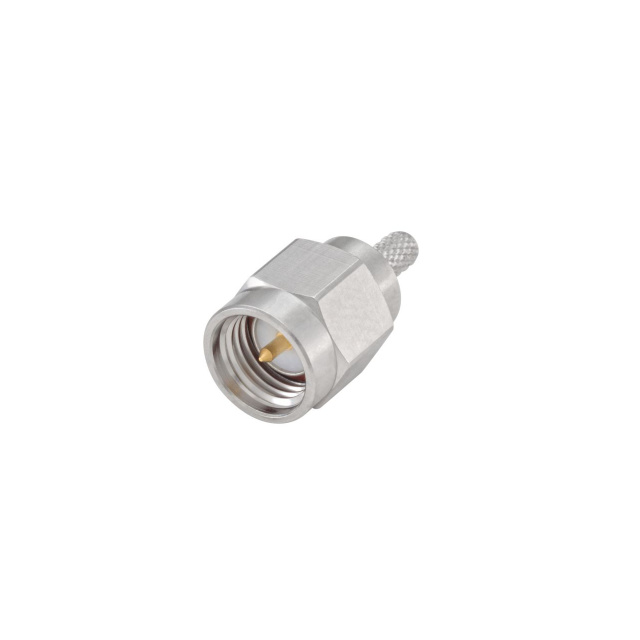

SMA STRAIGHT PLUG
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Finish | Body Material | Dielectric Material | Voltage Rating | Mounting Type | Fastening Type | Frequency - Max [Max] | Shield Termination | Connector Style | Center Contact Material | Cable Group | Contact Termination | Mounting Feature | Connector Type | Number of Ports | Housing Color | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | -65 ░C | 165 °C | Gold | White Bronze | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 480 V | Free Hanging (In-Line) | Threaded | 12.4 GHz | Crimp | SMA | Brass | RG-316 | Solder | Bulkhead | Plug Male Pin | 1 | Silver | 50 Ohms |
