MAX171 Series

Catalog

EVAL KIT FOR MAX17117

Part	Frequency - Switching	Current - Output	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Main Purpose	Utilized IC / Part	Outputs and Type	Outputs and Type	Board Type	Voltage - Output	Voltage - Output [Max]	Voltage - Output [Min]	Primary Attributes	Type	Function
Analog Devices Inc./Maxim Integrated MAX17117EVKIT+	1.2 MHz	10 mA 20 mA 200 mA 250 mA	Board(s)	2.3 V	5.5 V	Boost Inverting	Special Purpose DC/DC LCD Supply	MAX17117	4	Non-Isolated	Fully Populated	-6 V 4.25 V 8.5 V 23 V
Analog Devices Inc./Maxim Integrated MAX17122EVKIT+	750 kHz	2.2 A 2.5 A 25 mA 100 mA 450 mA	Board(s)	10 V	14 V	Boost Buck	Special Purpose DC/DC LCD Supply	MAX17122	6	Non-Isolated	Fully Populated	-7.5 V 3.3 V 5 V 15 VDC 28 V	-20 V	-12 V
Analog Devices Inc./Maxim Integrated MAX17135EVKIT+	1 MHz	20 mA 200 mA	Board(s)	2.7 V	5.5 V	Boost Buck	Electronic Paper Special Purpose DC/DC	MAX17135	4	Non-Isolated	Fully Populated	-20 V -15 V 15 VDC 22 V

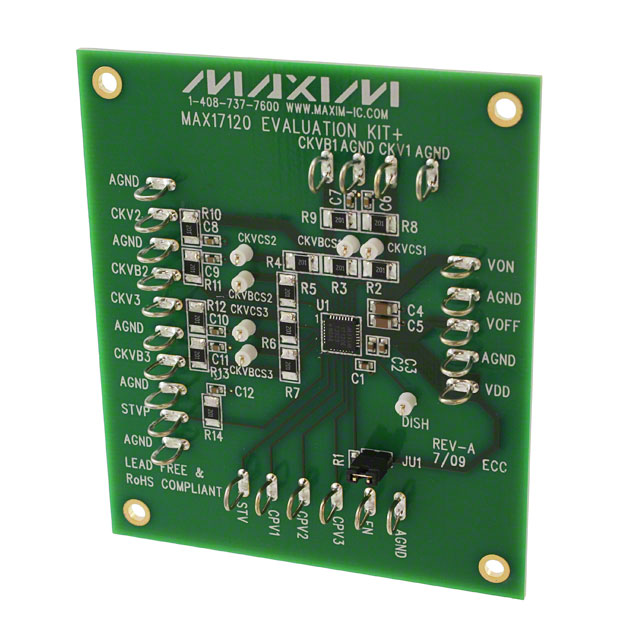

Analog Devices Inc./Maxim Integrated MAX17120EVKIT+			Board(s)					MAX17120							Level Shifter	Video	Video Processing

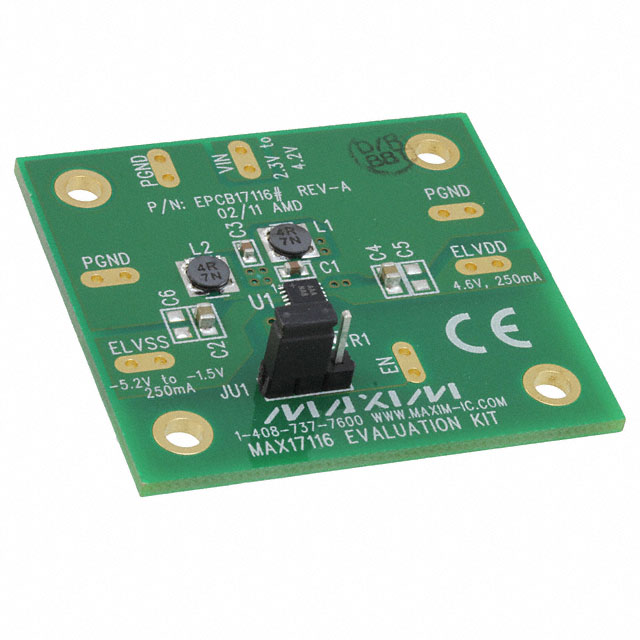

Analog Devices Inc./Maxim Integrated MAX17116EVKIT#	1.4 MHz	250 mA	Board(s)			Boost Inverting	Active Matrix OLED Special Purpose DC/DC	MAX17116	2	Non-Isolated	Fully Populated	4.6 V	-5.4 V	-1.5 V
