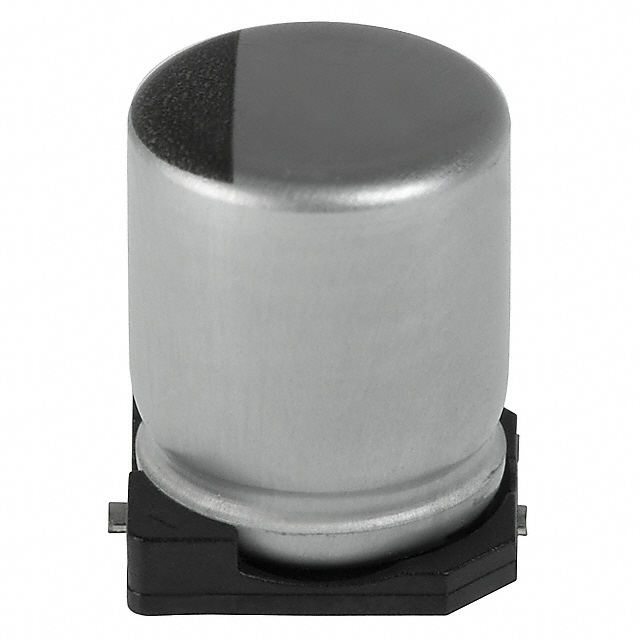

MZL Series

Manufacturer: Chemi-Con

Catalog

CAP ALUMINUM LYTIC 1000UF 10V 20% (10 X 10MM) SMD 0.85A 5000H 105°C T/R AUTOMOTIVE AEC-Q200

Part	ESR (Equivalent Series Resistance)	Capacitance	Tolerance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Ratings	Polarization	Mounting Type	Ripple Current @ High Frequency
Chemi-Con EMZL100ARA102MJA0G	80 mOhm	1000 µF	20 %	Radial Can - SMD	-55 C	105 ░C	0.406 "	0.406 in	10.3 mm	10.3 mm	510 mA	0.394 in	10 mm	5000 Hrs	Automotive	0.413 "	10.5 mm	10 V	AEC-Q200	Polar	Surface Mount	850 mA
Chemi-Con EMZL6R3ARA471MHA0G	160 mOhm	470 µF	20 %	Radial Can - SMD	-55 C	105 ░C	0.327 in	0.327 in	8.3 mm	8.3 mm	300 mA	0.315 in	8 mm	5000 Hrs	Automotive	0.413 "	10.5 mm	6.3 VDC	AEC-Q200	Polar	Surface Mount	600 mA
Chemi-Con EMZL100ARA471MHA0G	160 mOhm	470 µF	20 %	Radial Can - SMD	-55 C	105 ░C	0.327 in	0.327 in	8.3 mm	8.3 mm	300 mA	0.315 in	8 mm	5000 Hrs	Automotive	0.413 "	10.5 mm	10 V	AEC-Q200	Polar	Surface Mount	600 mA
