HS2L5F Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

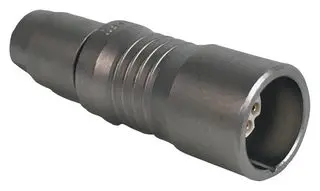

CIRCULAR CONNECTOR, DURA-PULL HS SERIES, CABLE MOUNT RECEPTACLE, 5 CONTACTS
| Part | Termination | Primary Material | Orientation | Mounting Type | Shell Material | Ingress Protection | Fastening Type | Number of Positions | Applications | Shell Finish | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Color | Material Flammability Rating | Shielding | Insert Material | Contact Finish - Mating | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Crimp Solder Cup | Metal | Keyed | Free Hanging (In-Line) | Copper Alloy | IP66 IP67 IP68 | Push-Pull | 5 | Agriculture Audio General Medical Testing Equipment & Measurement | Electroless Nickel | 4.57 mm | 0.18 " | 5.49 mm | 0.216 in | 125 VAC | -40 C | 135 °C | Receptacle Female Sockets | Silver | UL94 HF-1 | Shielded | Liquid Crystal Polymer (LCP) | Gold | Copper Alloy |
