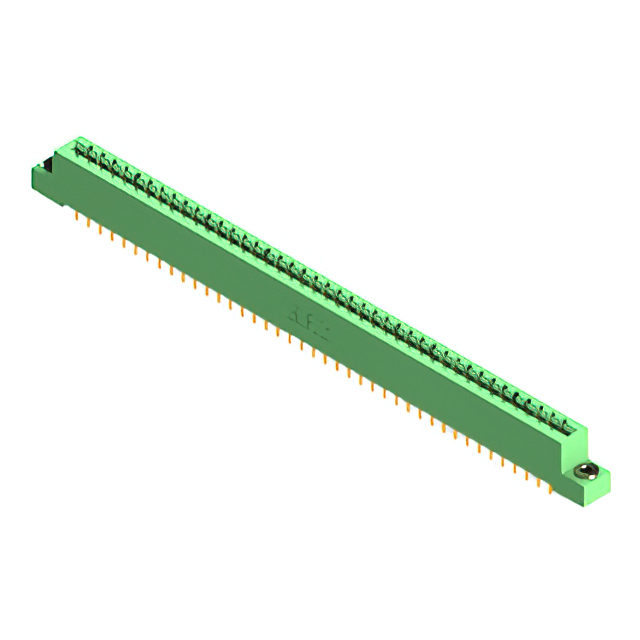

837-082 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 82POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Card Type | Read Out | Gender | Pitch | Pitch | Number of Rows [custom] | Contact Material | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Contact Finish | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Termination | Color | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Female | 3.96 mm | 0.156 in | 2 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | 125 °C | -40 C | Card Extender | Gold | 41 | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | 82 | Solder | Green | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Female | 3.96 mm | 0.156 in | 2 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | 125 °C | -40 C | Card Extender | Gold | 41 | 0.25 Ám | 10 Áin | 82 | Solder | Green | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Female | 3.96 mm | 0.156 in | 2 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 125 °C | -40 C | Gold | 41 | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | 82 | Wire Wrap | Green | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Female | 3.96 mm | 0.156 in | 2 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | 125 °C | -40 C | Card Extender | Gold | 41 | 0.25 Ám | 10 Áin | 0.116 " | 2.95 mm | 82 | Solder | Green | Floating Bobbin Flush Mount |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Female | 3.96 mm | 0.156 in | 2 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 125 °C | -40 C | Gold | 41 | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | 82 | Solder | Green | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Female | 3.96 mm | 0.156 in | 2 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 125 °C | -40 C | Gold | 41 | 0.25 Ám | 10 Áin | 82 | Solder | Green | 4-40 Flush Mount Threaded Insert Top Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Female | 3.96 mm | 0.156 in | 2 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 125 °C | -40 C | Gold | 41 | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | 82 | Solder | Green | Flush Mount Side Opening Unthreaded | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Female | 3.96 mm | 0.156 in | 2 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Board Edge Straddle Mount | 125 °C | -40 C | Card Extender | Gold | 41 | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | 82 | Solder | Green | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Female | 3.96 mm | 0.156 in | 2 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 125 °C | -40 C | Gold | 41 | 0.25 Ám | 10 Áin | 0.116 " | 2.95 mm | 82 | Solder | Green | Floating Bobbin Flush Mount | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Dual | Female | 3.96 mm | 0.156 in | 2 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | 125 °C | -40 C | Gold | 41 | 0.25 Ám | 10 Áin | 0.116 " | 2.95 mm | 82 | Solder | Green | Floating Bobbin Top Mount Opening |
