69191 Series

Catalog

CONN HEADER R/A 10POS 2.54MM

Part	Material Flammability Rating	Connector Type	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Material	Termination	Contact Shape	Insulation Material	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post	Insulation Color	Contact Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Mounting Type	Number of Rows	Contact Finish - Mating	Number of Positions
Amphenol ICC (FCI) 69191-410HLF	UL94 V-0	Header	All	0.12 in	3.05 mm	Unshrouded	0.095 in	2.41 mm	Phosphor Bronze	Kinked Pin Solder	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	10	0.1 in	2.54 mm	0.23 in	5.84 mm	Tin	Black	Male Pin	3 A	125 °C	-65 ░C	2.54 çm	100 çin	Push-Pull	Through Hole Right Angle	1
Amphenol ICC (FCI) 69191-110HLF	UL94 V-0	Header	All	0.12 in	3.05 mm	Unshrouded	0.095 in	2.41 mm	Phosphor Bronze	Kinked Pin Solder	Square		10	0.1 in	2.54 mm	0.23 in	5.84 mm		Black	Male Pin	3 A	125 °C	-65 ░C	0.76 Ám	30 Áin	Push-Pull	Through Hole Right Angle	1	Gold or Gold GXT™
Amphenol ICC (FCI) 69191-216	UL94 V-0	Header	All	0.12 in	3.05 mm	Unshrouded	0.095 in	2.41 mm	Phosphor Bronze	Kinked Pin Solder	Square			0.1 in	2.54 mm	0.23 in	5.84 mm		Black	Male Pin				0.38 µm	15 µin	Push-Pull	Through Hole Right Angle	1	Gold or Gold GXT™	16
Amphenol ICC (FCI) 69191-136	UL94 V-0	Header	All	0.12 in	3.05 mm	Unshrouded	0.095 in	2.41 mm	Phosphor Bronze	Kinked Pin Solder	Square		36	0.1 in	2.54 mm	0.23 in	5.84 mm		Black	Male Pin				0.76 Ám	30 Áin	Push-Pull	Through Hole Right Angle	1	Gold or Gold GXT™

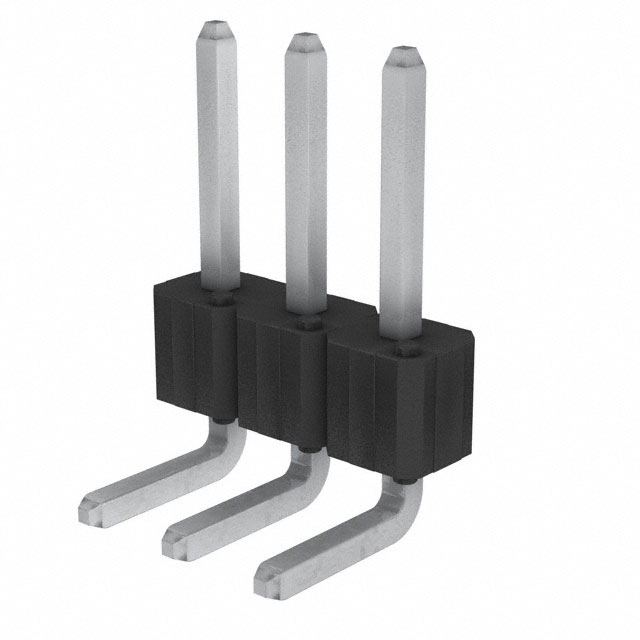

Amphenol ICC (FCI) 69191-403HLF	UL94 V-0	Header	All	0.12 in	3.05 mm	Unshrouded	0.095 in	2.41 mm	Phosphor Bronze	Kinked Pin Solder	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled		0.1 in	2.54 mm	0.23 in	5.84 mm	Tin	Black	Male Pin	3 A	125 °C	-65 ░C	2.54 çm	100 çin	Push-Pull	Through Hole Right Angle	1
Amphenol ICC (FCI) 69191-414HLF	UL94 V-0	Header	All	0.12 in	3.05 mm	Unshrouded	0.095 in	2.41 mm	Phosphor Bronze	Kinked Pin Solder	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	14	0.1 in	2.54 mm	0.23 in	5.84 mm	Tin	Black	Male Pin	3 A	125 °C	-65 ░C	2.54 çm	100 çin	Push-Pull	Through Hole Right Angle	1
Amphenol ICC (FCI) 69191-510	UL94 V-0	Header	All	0.12 in	3.05 mm	Unshrouded	0.095 in	2.41 mm	Phosphor Bronze	Kinked Pin Solder	Square		10	0.1 in	2.54 mm	0.23 in	5.84 mm		Black	Male Pin				0.38 µm	15 µin	Push-Pull	Through Hole Right Angle	1	Gold or Gold GXT™
Amphenol ICC (FCI) 69191-436HLF	UL94 V-0	Header	All	0.12 in	3.05 mm	Unshrouded	0.095 in	2.41 mm	Phosphor Bronze	Kinked Pin Solder	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	36	0.1 in	2.54 mm	0.23 in	5.84 mm	Tin	Black	Male Pin	3 A	125 °C	-65 ░C	2.54 çm	100 çin	Push-Pull	Through Hole Right Angle	1
Amphenol ICC (FCI) 69191-107HLF	UL94 V-0	Header	All	0.12 in	3.05 mm	Unshrouded	0.095 in	2.41 mm	Phosphor Bronze	Kinked Pin Solder	Square		7	0.1 in	2.54 mm	0.23 in	5.84 mm		Black	Male Pin	3 A	125 °C	-65 ░C	0.76 Ám	30 Áin	Push-Pull	Through Hole Right Angle	1	Gold or Gold GXT™
Amphenol ICC (FCI) 69191-208HLF	UL94 V-0	Header	All	0.12 in	3.05 mm	Unshrouded	0.095 in	2.41 mm	Phosphor Bronze	Kinked Pin Solder	Square		8	0.1 in	2.54 mm	0.23 in	5.84 mm		Black	Male Pin	3 A	125 °C	-65 ░C	0.38 µm	15 µin	Push-Pull	Through Hole Right Angle	1	Gold or Gold GXT™
