770182 Series

Catalog

CONN HEADER VERT 9POS 4.14MM

Part	Applications	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Color	Number of Rows [custom]	Insulation Height	Insulation Height	Contact Shape	Current Rating (Amps)	Voltage Rating	Number of Positions Loaded	Style	Shrouding	Contact Material	Termination	Contact Type	Contact Finish - Post	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Pitch - Mating	Pitch - Mating	Insulation Material

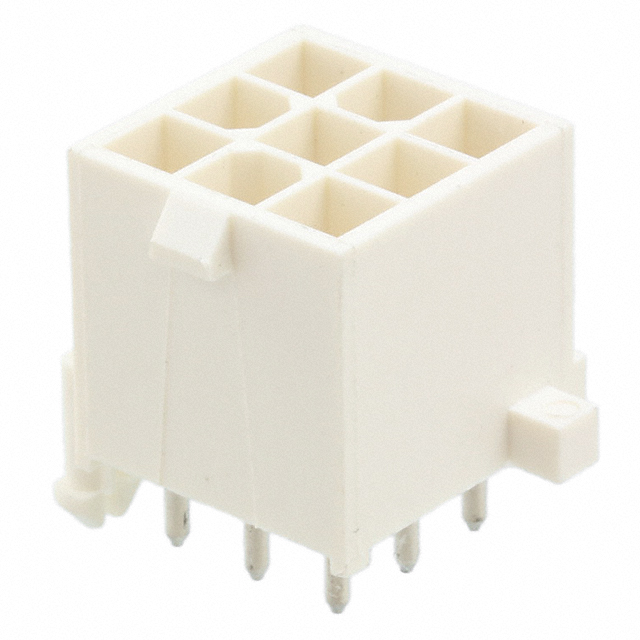

TE Connectivity AMP Connectors 770182-2	General Purpose	3.81 Ám	-20 ░C	105 ░C	9	White	3	13.5 mm	0.531 in	Circular	Varies by Wire Gauge	600 VAC	All	Board to Cable/Wire	Shrouded - 4 Wall	Brass	Solder	Male Pin	Tin-Lead	Through Hole	4.14 mm	0.163 in	Gold	4.45 mm	0.175 in	UL94 V-0	Header	Locking Ramp	0.76 Ám	30 Áin	Board Lock	0.163 in	4.14 mm	Nylon Polyamide (PA)
