AVHT Series
Manufacturer: Bourns Inc.
Beta
⌘K

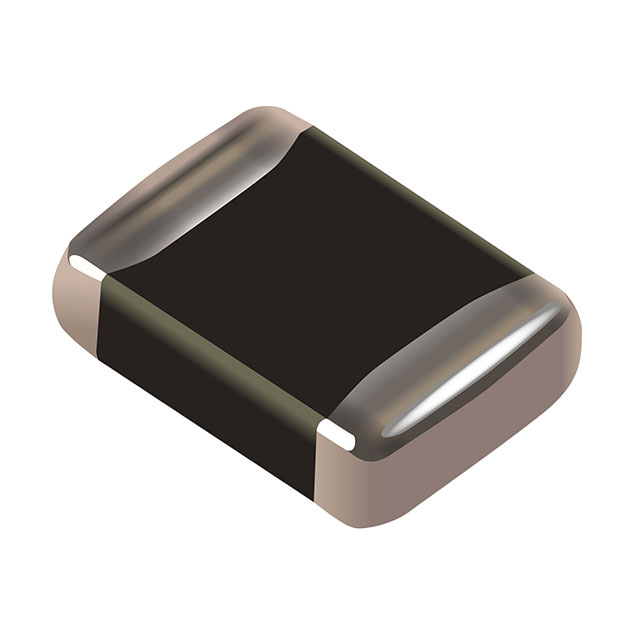

VAR MLV 14VAC/16VDC 800A 24V 1812 SMD AUTOMOTIVE AEC-Q200 T/R
| Part | Capacitance @ Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Current - Surge | Maximum DC Volts [Max] | Varistor Voltage (Max) | Mounting Type | Package / Case | Energy | Number of Circuits | Varistor Voltage (Min) [Min] | Maximum AC Volts [Max] | Varistor Voltage (Typ) | Package / Case | Varistor Voltage (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1 kHz 4500 pF | -55 °C | 150 °C | 800 A | 16 V | 26.4 V | MLCV Surface Mount | 1812 (4532 Metric) | 2.4 J | 1 | 21.6 V | 14 V | 24 V | ||
Bourns Inc. | 5500 pF | -55 °C | 150 °C | 1200 A | 56 V | MLCV Surface Mount | 2220 | 10.5 J | 1 | 61.2 V | 40 V | 68 V | 5750 Metric | 74.8 V |
