DDA Series

Catalog

ISOLATED DIN RAIL MOUNT DC/DC CONVERTER, ITE, 5:1, 250 W, 1 OUTPUT, 12 V, 20 A

Part	Applications	Input Type	Voltage - Output 1	Power (Watts)	DC Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Current - Output (Max) [Max]	Approval Agency	Features	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	DC Voltage - Input (Max) [Max]	Voltage - Output 2	Current - Output (Max)

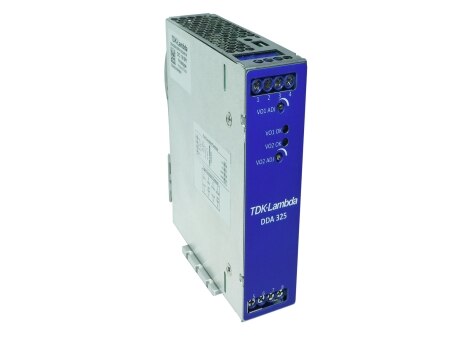

TDK Corporation DDA250N-S1PX-12-001	ITE (Commercial)	DC	12 V	250 W	9 V	123.4 mm	4.86 in	115.1 mm	36.6 mm	1.44 "	4.53 "	1	20 A	CE	Adjustable Output Remote On/Off Remote Sense	-40 C	100 °C	95 %	53 V
TDK Corporation DDA500N-D2PP-1205-001	ITE (Commercial)	DC	12 V	500 W	9 V	123.4 mm	4.86 in	115.1 mm	36.6 mm	1.44 "	4.53 "	2		CE	Adjustable Output Remote On/Off Remote Sense	-40 C	100 °C	95 %	53 V	5 V	20 A

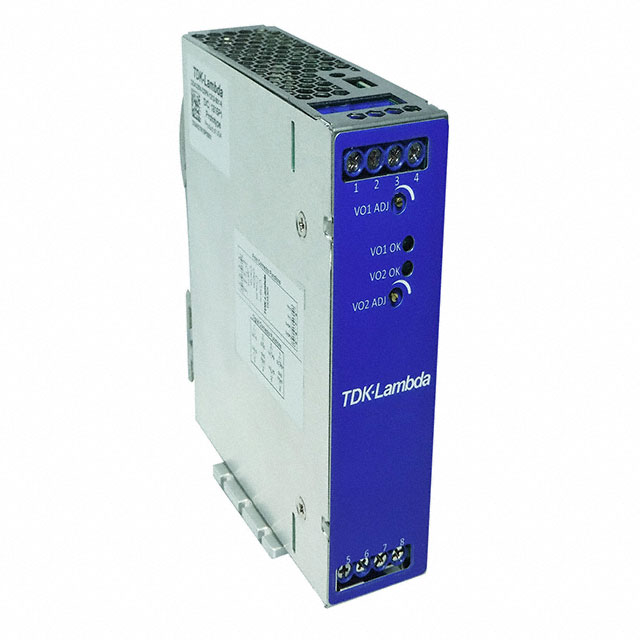

TDK Corporation DDA325N-D2PN-1212-001	ITE (Commercial)	DC	12 V	325 W	9 V	123.4 mm	4.86 in	115.1 mm	36.6 mm	1.44 "	4.53 "	2		CE	Adjustable Output Remote On/Off Remote Sense	-40 C	100 °C	94 %	40 V	-12 V	8 A 14 A
