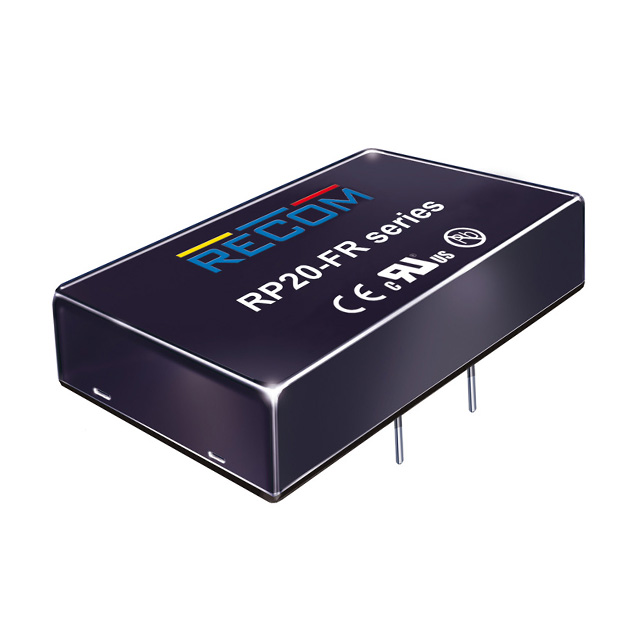

RP20-FR Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W 9-36VIN 15VOUT 1.33A

...

Part	Applications	Voltage - Isolation	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Mounting Type	Power (Watts)	Voltage - Input (Max) [Max]	Features	Number of Outputs	Control Features	Efficiency	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Size / Dimension
Recom Power RP20-2415SFR/P-HC	ITE (Commercial)	1.6 kV	15 V	0.66 in	25.4 mm	50.8 mm	1 "	16.8 mm	2 in	9 V	Through Hole	20 W	36 V	OCP OVP Remote On/Off SCP UVLO	1	Active High Enable	88 %	6-DIP Module	Isolated Module	79 °C	-40 C	1.33 A

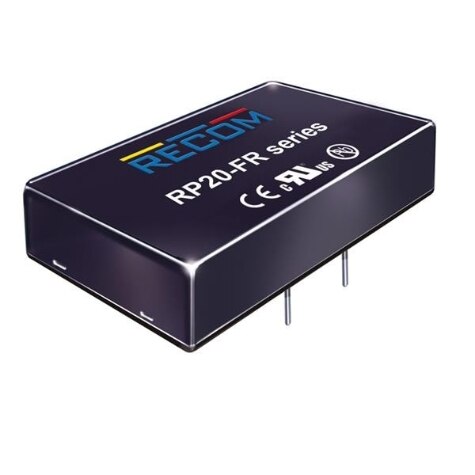

Recom Power RP20-11012DFR/P-HC	ITE (Commercial) Railway	1.6 kV	12 V	0.66 in	25.4 mm	50.8 mm	1 "	16.8 mm	2 in	43 V	Through Hole	20 W	160 V	OCP OVP Remote On/Off SCP UVLO	2	Active High Enable	88 %	6-DIP Module	Isolated Module	79 °C	-40 C		-12 V	833 mA	833 mA
Recom Power RP20-4815DFR/N	ITE (Commercial)	1.6 kV	15 V							18 V	Through Hole	20 W	75 V	OCP OVP Remote On/Off SCP UVLO	2	Active Low Enable	89 %	6-DIP Module	Isolated Module	79 °C	-40 C		-15 V	667 mA	667 mA	0.4 in 10.2 mm 25.4 mm 50.8 mm
Recom Power RP20-4812DFR/P	ITE (Commercial)	1.6 kV	12 V							18 V	Through Hole	20 W	75 V	OCP OVP Remote On/Off SCP UVLO	2	Active High Enable	88 %	6-DIP Module	Isolated Module	79 °C	-40 C		-12 V	833 mA	833 mA	0.4 in 10.2 mm 25.4 mm 50.8 mm
Recom Power RP20-4812DFR/XC	ITE (Commercial)	1.6 kV	12 V							18 V	Through Hole	20 W	75 V	OCP OVP SCP UVLO	2		88 %	6-DIP Module 5 Leads	Isolated Module	79 °C	-40 C		-12 V	833 mA	833 mA	0.4 in 10.2 mm 25.4 mm 50.8 mm
Recom Power RP20-2405SFR/N-HC	ITE (Commercial)	1.6 kV	5 V	0.66 in	25.4 mm	50.8 mm	1 "	16.8 mm	2 in	9 V	Through Hole	20 W	36 V	OCP OVP Remote On/Off SCP UVLO	1	Active Low Enable	88 %	6-DIP Module	Isolated Module	79 °C	-40 C	4 A
Recom Power RP20-11005SFR/XC	ITE (Commercial)	1.6 kV	5 V							43 V	Through Hole	20 W	160 V	OCP OVP SCP UVLO	1		88 %	6-DIP Module 5 Leads	Isolated Module	79 °C	-40 C	4 A				0.4 in 10.2 mm 25.4 mm 50.8 mm
Recom Power RP20-4815SFR/N-HC	ITE (Commercial)	1.6 kV	15 V	0.66 in	25.4 mm	50.8 mm	1 "	16.8 mm	2 in	18 V	Through Hole	20 W	75 V	OCP OVP Remote On/Off SCP UVLO	1	Active Low Enable	89 %	6-DIP Module	Isolated Module	79 °C	-40 C	1.33 A
Recom Power RP20-2415DFR/N	ITE (Commercial)	1.6 kV	15 V							9 V	Through Hole	20 W	36 V	OCP OVP Remote On/Off SCP UVLO	2		89 %	6-DIP Module	Isolated Module	79 °C	-40 C		-15 V	667 mA	667 mA	0.4 in 10.2 mm 25.4 mm 50.8 mm
Recom Power RP20-2412DFR/P-HC	ITE (Commercial)	1.6 kV	12 V	0.66 in	25.4 mm	50.8 mm	1 "	16.8 mm	2 in	9 V	Through Hole	20 W	36 V	OCP OVP Remote On/Off SCP UVLO	2	Active High Enable	88 %	6-DIP Module	Isolated Module	79 °C	-40 C		-12 V	833 mA	833 mA
