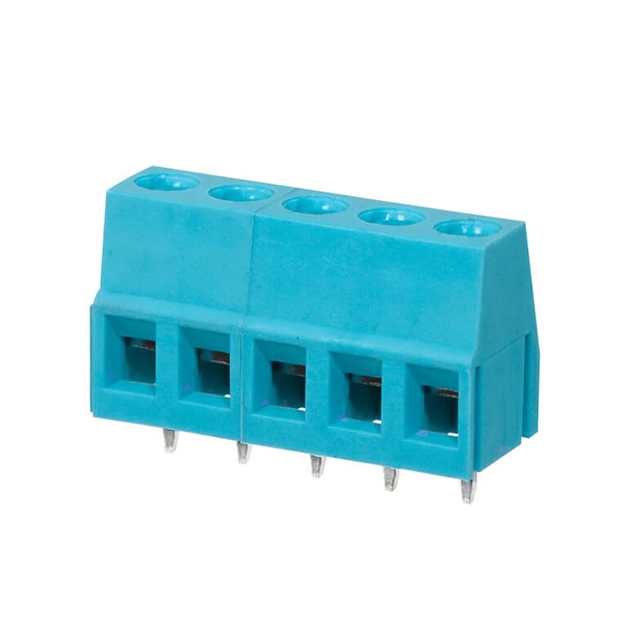

TB004 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

TERMINAL BLOCK, SCREW TYPE, 5.08

Part	Features	Mounting Type	Screw Thread	Positions Per Level [custom]	Voltage	Number of Levels	Color	Wire Gauge [Max]	Wire Gauge [Min]	Clamp Material - Plating [custom]	Clamp Material - Plating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Contact Material - Plating	Screw Material - Plating	Torque - Screw	Torque - Screw	Current	Mating Orientation	Wire Termination	Positions Per Level
Same Sky (Formerly CUI Devices) TB004-508-24BE	Interlocking (Side)	Through Hole	M3	24	300 VDC	1	Blue	24 AWG	12 AWG	Nickel Plated	Copper Alloy	-40 C	105 ░C	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Steel - Zinc Plated	4.4 Lb-In	0.5 Nm	16 A	Horizontal with Board	Screw - Rising Cage Clamp
Same Sky (Formerly CUI Devices) TB004-508-18BE	Interlocking (Side)	Through Hole			300 VDC	1	Blue	24 AWG	12 AWG					5.08 mm	0.2 in					16 A	Horizontal with Board	Screw - Rising Cage Clamp	18

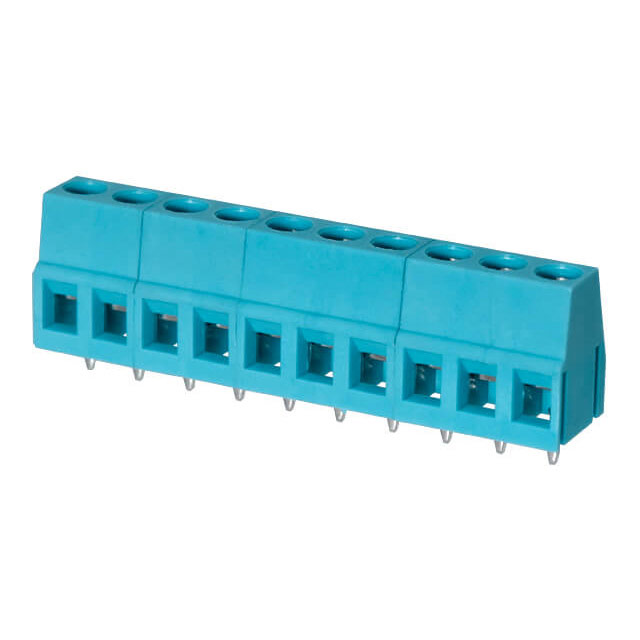

Same Sky (Formerly CUI Devices) TB004-508-10BE	Interlocking (Side)	Through Hole			300 VDC	1	Blue	24 AWG	12 AWG					5.08 mm	0.2 in					16 A	Horizontal with Board	Screw - Rising Cage Clamp	10
Same Sky (Formerly CUI Devices) TB004-508-05BE	Interlocking (Side)	Through Hole			300 VDC	1	Blue	24 AWG	12 AWG					5.08 mm	0.2 in					16 A	Horizontal with Board	Screw - Rising Cage Clamp	5
Same Sky (Formerly CUI Devices) TB004-508-10BE	Interlocking (Side)	Through Hole	M3		300 VDC	1	Blue	24 AWG	12 AWG	Nickel Plated	Copper Alloy	-40 C	105 ░C	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Steel - Zinc Plated	4.4 Lb-In	0.5 Nm	16 A	Horizontal with Board	Screw - Rising Cage Clamp	10
Same Sky (Formerly CUI Devices) TB004-508-09BE	Interlocking (Side)	Through Hole	M3		300 VDC	1	Blue	24 AWG	12 AWG	Nickel Plated	Copper Alloy	-40 C	105 ░C	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Steel - Zinc Plated	4.4 Lb-In	0.5 Nm	16 A	Horizontal with Board	Screw - Rising Cage Clamp	9
Same Sky (Formerly CUI Devices) TB004-508-23BE	Interlocking (Side)	Through Hole	M3		300 VDC	1	Blue	24 AWG	12 AWG	Nickel Plated	Copper Alloy	-40 C	105 ░C	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Steel - Zinc Plated	4.4 Lb-In	0.5 Nm	16 A	Horizontal with Board	Screw - Rising Cage Clamp	23
Same Sky (Formerly CUI Devices) TB004-508-06BE	Interlocking (Side)	Through Hole	M3		300 VDC	1	Blue	24 AWG	12 AWG	Nickel Plated	Copper Alloy	-40 C	105 ░C	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Steel - Zinc Plated	4.4 Lb-In	0.5 Nm	16 A	Horizontal with Board	Screw - Rising Cage Clamp	6
Same Sky (Formerly CUI Devices) TB004-508-02BE	Interlocking (Side)	Through Hole	M3		300 VDC	1	Blue	24 AWG	12 AWG	Nickel Plated	Copper Alloy	-40 C	105 ░C	5.08 mm	0.2 in	Copper Alloy - Tin Plated	Steel - Zinc Plated	4.4 Lb-In	0.5 Nm	16 A	Horizontal with Board	Screw - Rising Cage Clamp	2
Same Sky (Formerly CUI Devices) TB004-508-03BE	Interlocking (Side)	Through Hole			300 VDC	1	Blue	24 AWG	12 AWG					5.08 mm	0.2 in					16 A	Horizontal with Board	Screw - Rising Cage Clamp	3
