NPPC322 Series

Catalog

CONN HDR 64POS 0.1 GOLD SMD

Part	Contact Finish Thickness - Post	Insulation Material	Contact Material	Contact Shape	Number of Positions	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Material Flammability Rating	Number of Positions Loaded	Mounting Type	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Type	Contact Finish - Post	Connector Type	Voltage Rating	Contact Finish Thickness - Mating	Insulation Color	Features	Contact Length - Post	Contact Length - Post	Insulation Height [z]

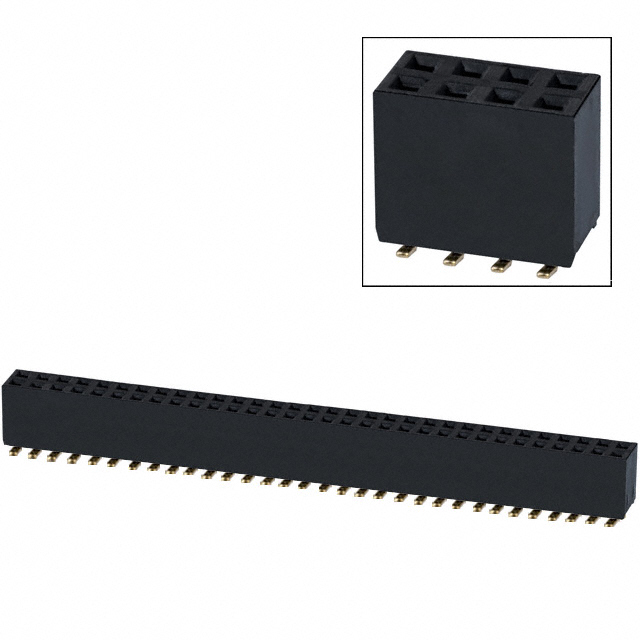

Sullins Connector Solutions NPPC322KFMS-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	64	Push-Pull	0.1 "	2.54 mm	0.299 "	7.6 mm	Solder	125 °C	-40 C	3 A	UL94 V-0	All	Surface Mount	2	0.1 in	2.54 mm	Gold	Female Socket	Gold	Header	250 V	Flash	Black
Sullins Connector Solutions NPPC322KFMP-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	64	Push-Pull	0.1 "	2.54 mm	0.299 "	7.6 mm	Solder	125 °C	-40 C	3 A	UL94 V-0	All	Surface Mount	2	0.1 in	2.54 mm	Gold	Female Socket	Gold	Header	250 V	Flash	Black	Board Guide
Sullins Connector Solutions NPPC322LJBN-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	64	Push-Pull	0.1 "	2.54 mm	0.2 in		Solder	105 ░C	-40 C	3 A	UL94 V-0	All	Right Angle Through Hole	2	0.1 in	2.54 mm	Gold	Female Socket	Gold	Header	250 V	Flash	Black		0.124 in	3.15 mm	5.08 mm
