HG3-DC Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

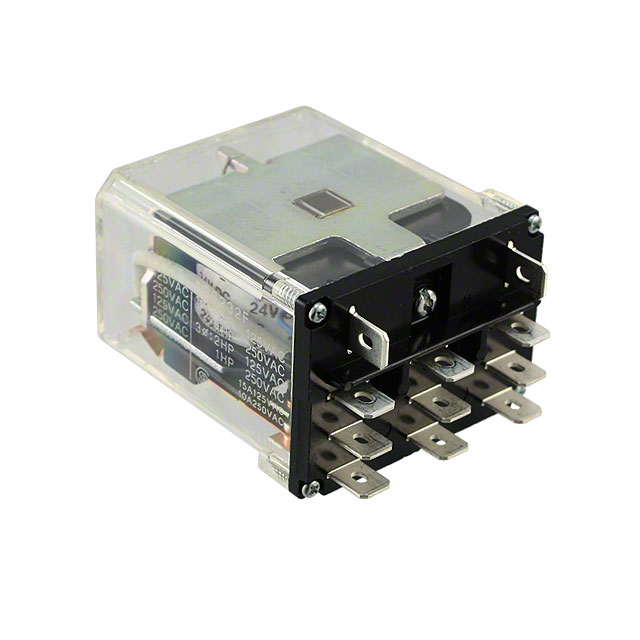

RELAY GEN PURPOSE 3PDT 20A 24V
| Part | Coil Resistance | Mounting Type | Termination Style | Contact Material | Switching Voltage | Must Release Voltage | Contact Rating (Current) | Coil Type | Contact Form | Approval Agency | Operate Time | Relay Type | Coil Voltage | Release Time | Must Operate Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 364 Ohms | Socketable | Plug In Quick Connect - 0.250" (6.3mm) | Silver Alloy | 250 VAC | 2.4 VDC | 20 A | Non Latching | 3PDT (3 Form C) | CSA UR | 25 ms | General Purpose | 24 VDC | 25 ms | 19.2 VDC | -50 °C | 40 °C | 66 mA |
Panasonic Electronic Components | Socketable | Plug In Quick Connect - 0.250" (6.3mm) | Silver Alloy | 250 VAC | 1.2 VDC | 20 A | Non Latching | 3PDT (3 Form C) | CSA UR | 25 ms | General Purpose | 12 VDC | 25 ms | 9.6 VDC | -50 °C | 40 °C | 134 mA | |
 Panasonic Electronic Components | 364 Ohms | Socketable | Plug In Quick Connect - 0.250" (6.3mm) | Silver Tin Oxide (AgSnO) | 250 VAC | 2.4 VDC | 20 A | Non Latching | 3PDT (3 Form C) | CSA UR | 40 ms | General Purpose | 24 VDC | 40 ms | 19.2 VDC | -50 °C | 40 °C | 66 mA |
