9GA0848 Series

Catalog

FAN AXIAL 80X32MM 48VDC WIRE

Part	Material - Blade	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	RPM	Approval Agency	Air Flow	Air Flow	Static Pressure	Static Pressure	Power (Watts)	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Fan Type	Width [y]	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Noise	Features	Weight	Weight	Bearing Type	Lifetime @ Temp.

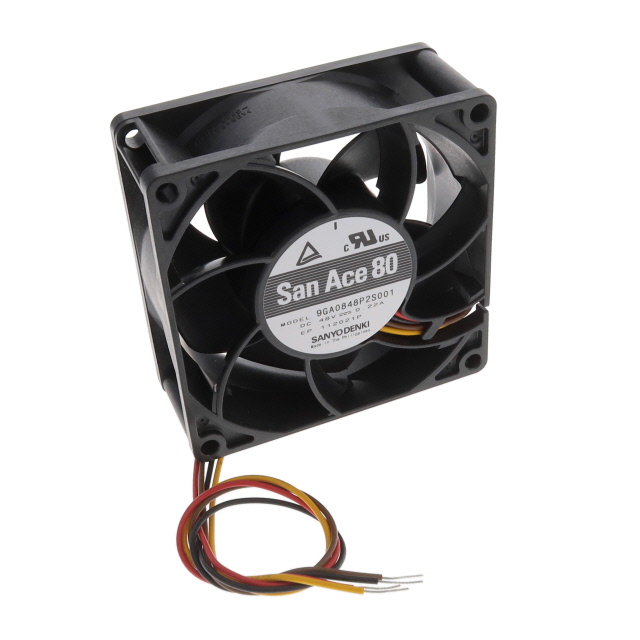

Sanyo Denki America Inc. 9GA0848P2S001	Plastic	Plastic	40000 Hrs	0.22 A	55.2 VDC	40.8 VDC	9700 RPM	CSA TUV UL	86.5 CFM	2.42 m³/min	361.2 Pa	1.45 in H2O	10.56 W	3 Wire Leads	70 °C	-10 °C	Tubeaxial	32 mm	48 VDC	80 mm	80 mm	57 dB	Locked Rotor Protection Speed Sensor (Tach)	130.18 g	0.287 lb	Ball
Sanyo Denki America Inc. 9GA0848P1S611	Plastic	Plastic		0.25 A	55.2 VDC	40.8 VDC	9550 RPM	CSA TUV UL	91.8 CFM	2.57 m³/min	480.8 Pa	1.93 in H2O	12 W	4 Wire Leads	70 °C	-20 ░C	Tubeaxial	38 mm	48 VDC	80 mm	80 mm	59 dB(A)	Locked Rotor Protection PWM Control Speed Sensor (Tach)	160.12 g	0.353 lb	Ball	Varies Based on Temperature
Sanyo Denki America Inc. 9GA0848P2S0011	Plastic	Plastic	40000 Hrs	0.22 A	55.2 VDC	40.8 VDC	9700 RPM	CSA TUV UL	86.5 CFM	2.42 m³/min	361.2 Pa	1.45 in H2O	10.56 W	4 Wire Leads	70 °C	-10 °C	Tubeaxial	32 mm	48 VDC	80 mm	80 mm	57 dB	Locked Rotor Protection PWM Control Speed Sensor (Tach)	130.18 g	0.287 lb	Ball
Sanyo Denki America Inc. 9GA0848P1S61	Plastic	Plastic		0.25 A	55.2 VDC	40.8 VDC	9550 RPM	CSA TUV UL	91.8 CFM	2.57 m³/min	480.8 Pa	1.93 in H2O	12 W	4 Wire Leads	70 °C	-20 ░C	Tubeaxial	38 mm	48 VDC	80 mm	80 mm	59 dB(A)	Locked Rotor Protection PWM Control Speed Sensor (Tach)	160.12 g	0.353 lb	Ball	Varies Based on Temperature
