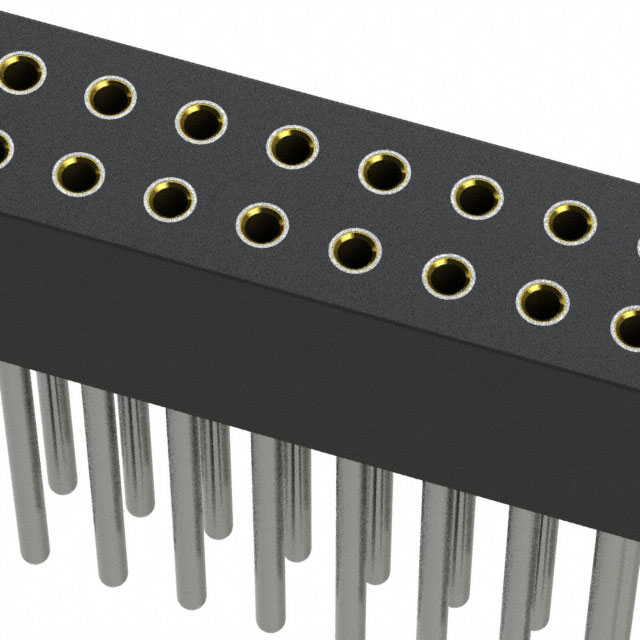

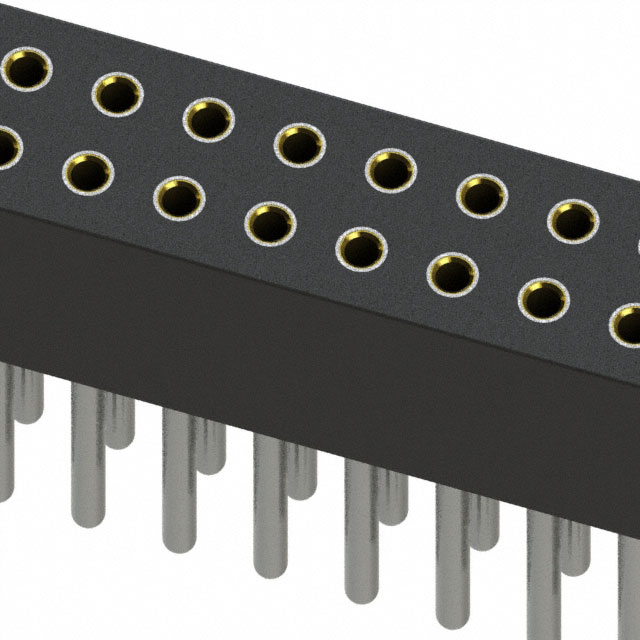

853-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 54POS 0.05 GOLD SMD

...

Part	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Fastening Type	Number of Rows [custom]	Material Flammability Rating	Contact Finish - Post	Connector Type	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Termination	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Length - Post [custom]	Contact Length - Post [custom]	Contact Length - Post [x]	Contact Length - Post [x]
Mill-Max Manufacturing Corp. 853-43-054-30-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Black	All	Gold	Push-Pull	2	UL94 V-0	Tin	Receptacle	54	0.05 in	1.27 mm	5.25 mm	0.207 in	Solder	3 A	Surface Mount	-55 C	125 °C	1.27 mm	0.05 in	Female Socket	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 853-43-018-10-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Black	All	Gold	Push-Pull	2	UL94 V-0	Tin	Receptacle	18	0.05 in	1.27 mm	4.01 mm	0.158 in	Solder	3 A	Through Hole	-55 C	125 °C	1.27 mm	0.05 in	Female Socket	0.76 Ám	30 Áin	2.6 mm	0.102 in

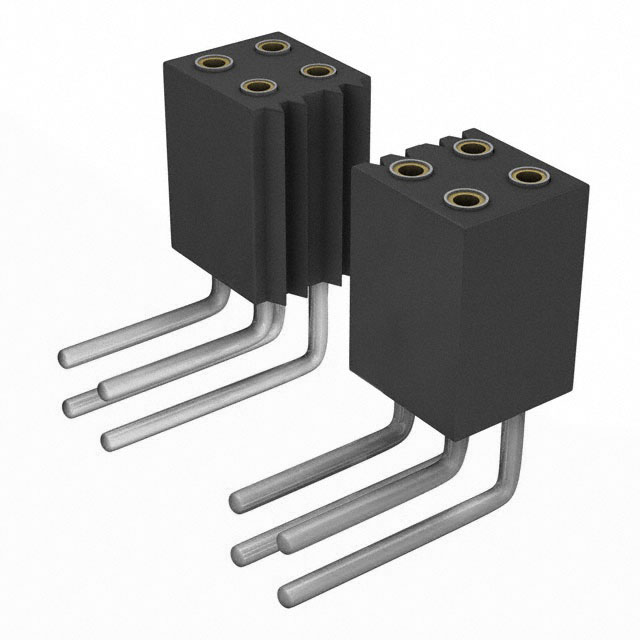

Mill-Max Manufacturing Corp. 853-43-038-20-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Black	All	Gold	Push-Pull	2	UL94 V-0	Tin	Receptacle	38	0.05 in	1.27 mm	3.05 mm	0.12 in	Solder	3 A	Right Angle Through Hole	-55 C	125 °C	1.27 mm	0.05 in	Female Socket	0.76 Ám	30 Áin			0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 853-43-020-10-011000	Brass Alloy	200 µin	5.08 µm	Nylon 4/6 Polyamide (PA46)	Circular	Black	All	Gold	Push-Pull	2		Tin	Receptacle	20	0.05 in	1.27 mm	4.01 mm	0.158 in	Solder		Through Hole			1.27 mm	0.05 in	Female Socket	0.76 Ám	30 Áin					5.05 mm	0.199 in
Mill-Max Manufacturing Corp. 853-43-066-30-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Black	All	Gold	Push-Pull	2	UL94 V-0	Tin	Receptacle	66	0.05 in	1.27 mm	5.25 mm	0.207 in	Solder	3 A	Surface Mount	-55 C	125 °C	1.27 mm	0.05 in	Female Socket	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 853-43-062-10-021000	Brass Alloy	200 µin	5.08 µm	Nylon 4/6 Polyamide (PA46)	Circular	Black	All	Gold	Push-Pull	2		Tin	Receptacle	62	0.05 in	1.27 mm	4.01 mm	0.158 in	Solder		Through Hole			1.27 mm	0.05 in	Female Socket	0.76 Ám	30 Áin	7.6 mm	0.299 in
Mill-Max Manufacturing Corp. 853-43-090-10-021000	Brass Alloy	200 µin	5.08 µm	Nylon 4/6 Polyamide (PA46)	Circular	Black	All	Gold	Push-Pull	2		Tin	Receptacle	90	0.05 in	1.27 mm	4.01 mm	0.158 in	Solder		Through Hole			1.27 mm	0.05 in	Female Socket	0.76 Ám	30 Áin	7.6 mm	0.299 in

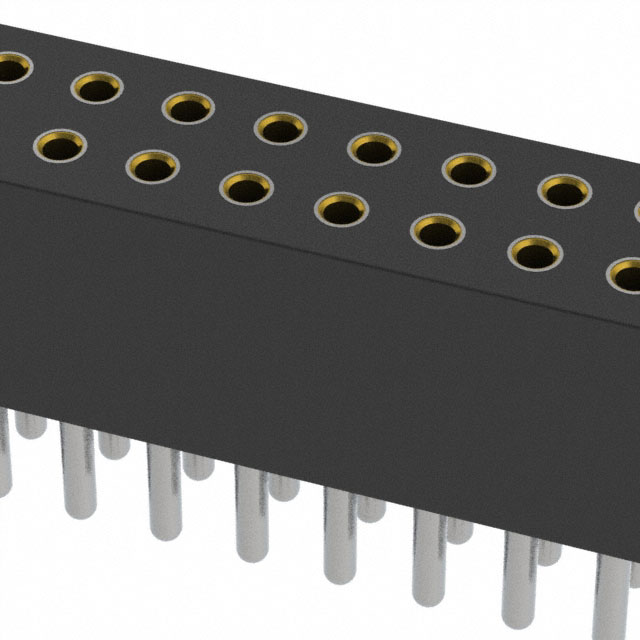

Mill-Max Manufacturing Corp. 853-43-016-10-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Black	All	Gold	Push-Pull	2	UL94 V-0	Tin	Receptacle	16	0.05 in	1.27 mm	4.01 mm	0.158 in	Solder	3 A	Through Hole	-55 C	125 °C	1.27 mm	0.05 in	Female Socket	0.76 Ám	30 Áin	2.6 mm	0.102 in
Mill-Max Manufacturing Corp. 853-43-090-30-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Black	All	Gold	Push-Pull	2	UL94 V-0	Tin	Receptacle	90	0.05 in	1.27 mm	5.25 mm	0.207 in	Solder	3 A	Surface Mount	-55 C	125 °C	1.27 mm	0.05 in	Female Socket	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 853-43-050-30-001000	Beryllium Copper	200 µin	5.08 µm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Black	All	Gold	Push-Pull	2	UL94 V-0	Tin	Receptacle	50	0.05 in	1.27 mm	5.25 mm	0.207 in	Solder	3 A	Surface Mount	-55 C	125 °C	1.27 mm	0.05 in	Female Socket	0.76 Ám	30 Áin
