A2N7002 Series

Catalog

MOSFETS AUTOMOTIVE MOSFET N-CH 60V 0.3A DFN1006-3

Part	Package / Case	Qualification	Input Capacitance (Ciss) (Max) @ Vds [Max]	Power Dissipation (Max) [Max]	Drain to Source Voltage (Vdss)	Mounting Type	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Technology	Vgs (Max)	FET Type	Grade

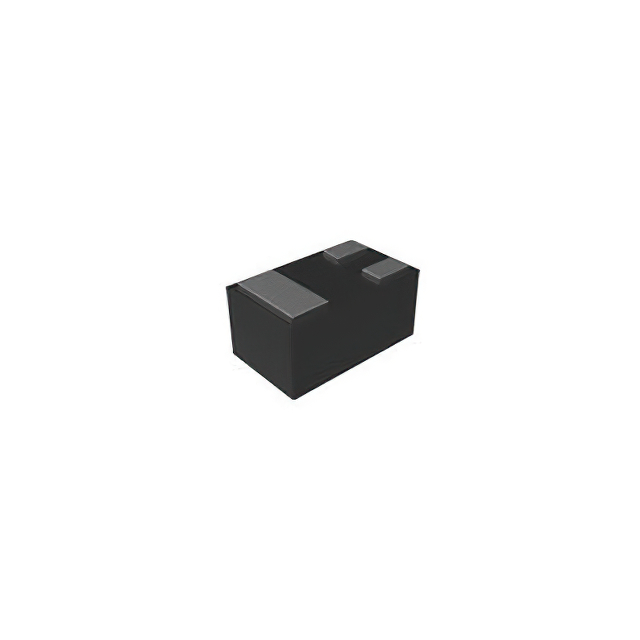

Comchip Technology A2N7002HL-HF	SC-101 SOT-883	AEC-Q101	41 pF	150 mW	60 V	Surface Mount	2.5 V	2.5 Ohm	300 mA	150 °C	-55 °C	DFN1006-3	MOSFET (Metal Oxide)	20 V	N-Channel	Automotive

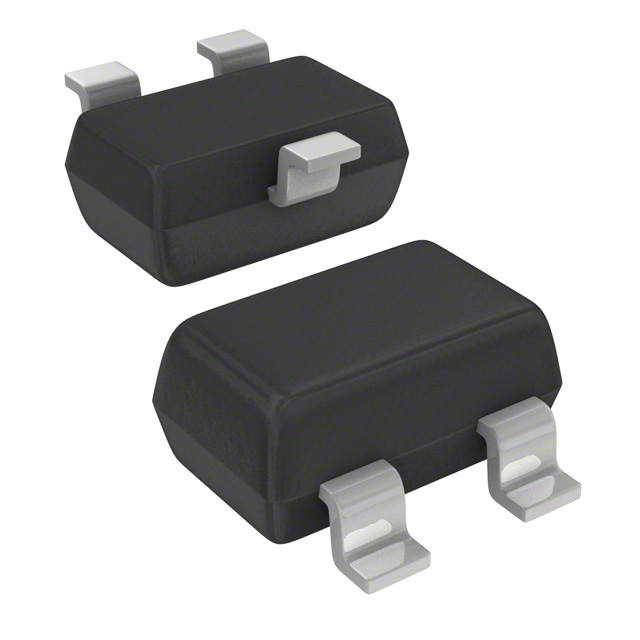

Comchip Technology A2N7002HW-HF	SC-70 SOT-323	AEC-Q101	41 pF	250 mW	60 V	Surface Mount	2.5 V	2.5 Ohm	300 mA	150 °C	-55 °C	SOT-323	MOSFET (Metal Oxide)	20 V	N-Channel	Automotive
