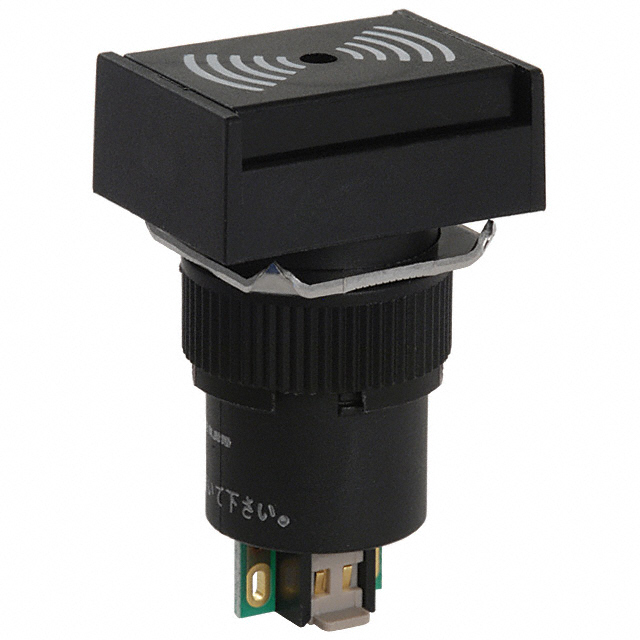

M2BJ Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

BUZZER PIEZO 6V 24X18MM PNL MNT

Part	Operating Mode	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Duration	Voltage - Rated	Port Location	Frequency	Driver Circuitry	Sound Pressure Level (SPL)	Technology	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Termination	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Supply	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Range [Min]	Voltage Range [Max]	Input Type	Ingress Protection	Current - Supply [Min]	Current - Supply [Max]
Omron Electronics Inc-EMC Div M2BJ-B06A	Pin Selectable	38 mm	1.496 in	Variable	6 VDC	Top	2 kHz	Indicator Internally Driven	80 dB	Piezo	55 °C	-10 °C	Connector	18 mm	0.709 "	24 mm	0.945 in	7 mA
Omron Electronics Inc-EMC Div M2BJ-B06B	Pin Selectable	38 mm	1.496 in	Variable	6 VDC	Top	4 kHz	Indicator Internally Driven	80 dB	Piezo	55 °C	-10 °C	Connector	18 mm	0.709 "	24 mm	0.945 in
Omron Electronics Inc-EMC Div M2BJ-B06C	Pin Selectable	38 mm	1.496 in	Variable	6 VDC	Top	4 kHz	Indicator Internally Driven	80 dB	Piezo	55 °C	-10 °C	Connector	18 mm	0.709 "	24 mm	0.945 in
Omron Electronics Inc-EMC Div M2BJ-BH24E-D	Pin Selectable			Variable		Top	3 kHz	Indicator Internally Driven	70 dB	Piezo	55 °C	-10 °C	Connector	20 mm	0.787 in	26 mm	1.024 in	50 mA	1.752 in	44.5 mm	12 VDC	13 VDC	DC
Omron Electronics Inc-EMC Div M2BJ-B24A	Pin Selectable	38 mm	1.496 in	Variable		Top	2 kHz	Indicator Internally Driven	80 dB	Piezo	55 °C	-10 °C	Connector	18 mm	0.709 "	24 mm	0.945 in				12 VDC	24 V		IP40	7 mA	20 mA
Omron Electronics Inc-EMC Div M2BJ-B24C	Pin Selectable	38 mm	1.496 in	Variable		Top	4 kHz	Indicator Internally Driven	80 dB	Piezo	55 °C	-10 °C	Connector	18 mm	0.709 "	24 mm	0.945 in				12 VDC	24 V
