RPX-1.5 Series
Manufacturer: Recom Power
Beta
⌘K
NON ISOLATED POL DC/DC CONVERTER, 45 W, 800 MV, 30 V, 1.5 A, ADJUSTABLE
| Part | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Efficiency | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Voltage - Input (Max) [Max] | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Package / Case | Applications | Supplier Device Package | Type | Board Type | Outputs and Type | Outputs and Type | Supplied Contents | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output | Utilized IC / Part | Contents | Regulator Topology | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 1.5 A | 4 V | 87 % | 0.8 V | 30 V | 36 V | 1 | 0.06 " | 0.12 in | 3 mm | 5 mm | 0.2 in | 1.6 mm | Surface Mount | 16-PowerLFQFN Module | ITE (Commercial) | 16-QFN (5x3) | Non-Isolated PoL Module | ||||||||||||

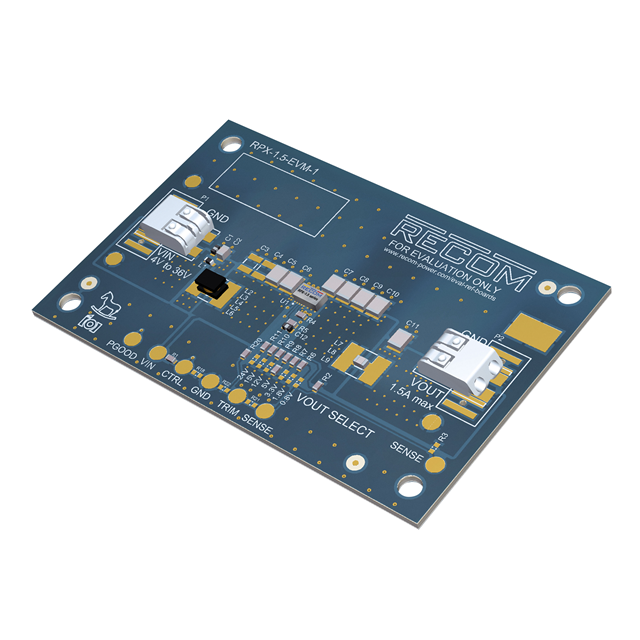

 Recom Power | Fully Populated | 7 Non-Isolated Outputs Non-Isolated | 7 | Board(s) | 0.8 V 1.8 V 3.3 V 5 V 12 V 15 V 24 V | 4 V | 36 V | 1.5 A | RPX-1.5 | Board(s) | Buck | DC/DC Step Down |
