FI-SEB20 Series

Catalog

CONN HEADER BRD EDGE 20P 1.25MM

Part	Insulation Height	Insulation Height	Mounting Type	Contact Finish - Post	Shrouding	Contact Material	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Type	Contact Shape	Material Flammability Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish - Mating	Current Rating (Amps)	Fastening Type	Number of Rows	Style	Number of Positions	Insulation Color	Voltage Rating	Termination

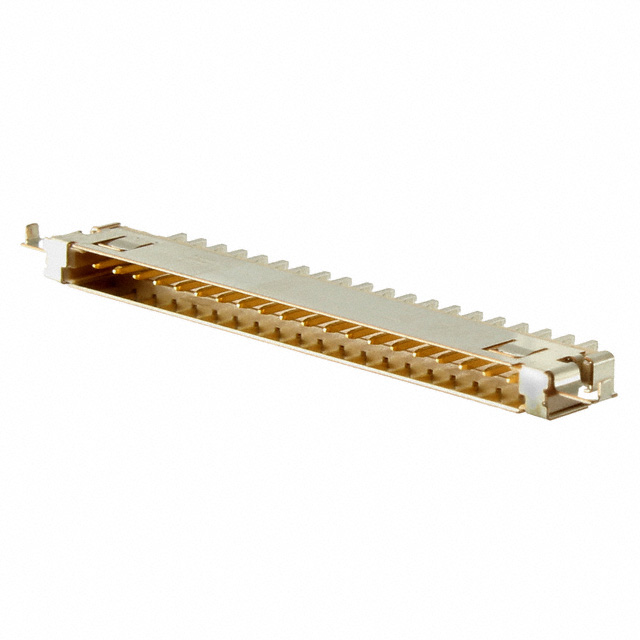

JAE Electronics FI-SEB20P-HF10E	0.077 "	1.95 mm	Board Edge Cutout Surface Mount Right Angle	Tin Tin-Alloy	Shrouded - 4 Wall	Copper Alloy	All	0.049 in	1.25 mm	Male Pin	Square	UL94 V-0	Receptacle	80 °C	-40 C	Shielded Solder Retention	Gold	1 A	Friction Lock	1	Board to Cable/Wire	20	Beige	200 V	Solder

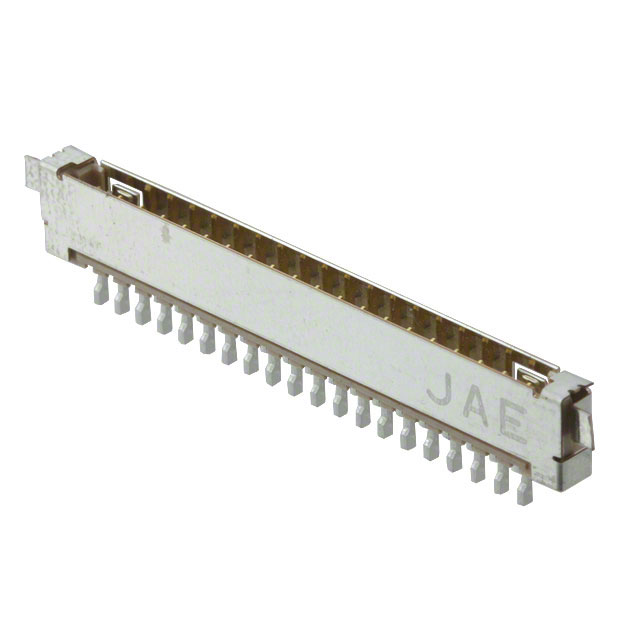

JAE Electronics FI-SEB20P-HFE	0.077 "	1.95 mm	Board Edge Cutout Surface Mount Right Angle	Tin Tin-Alloy	Shrouded - 4 Wall	Copper Alloy	All	0.049 in	1.25 mm	Male Pin	Square	UL94 V-0	Receptacle	80 °C	-40 C	Shielded Solder Retention	Gold	1 A	Friction Lock	1	Board to Cable/Wire	20	Beige	200 V	Solder
JAE Electronics FI-SEB20P-HFE-E3000	0.077 "	1.95 mm	Board Edge Cutout Surface Mount Right Angle	Tin Tin-Alloy	Shrouded - 4 Wall	Copper Alloy	All	0.049 in	1.25 mm	Male Pin	Square	UL94 V-0	Receptacle	80 °C	-40 C	Shielded Solder Retention	Gold	1 A	Friction Lock	1	Board to Cable/Wire	20	Beige	200 V	Solder

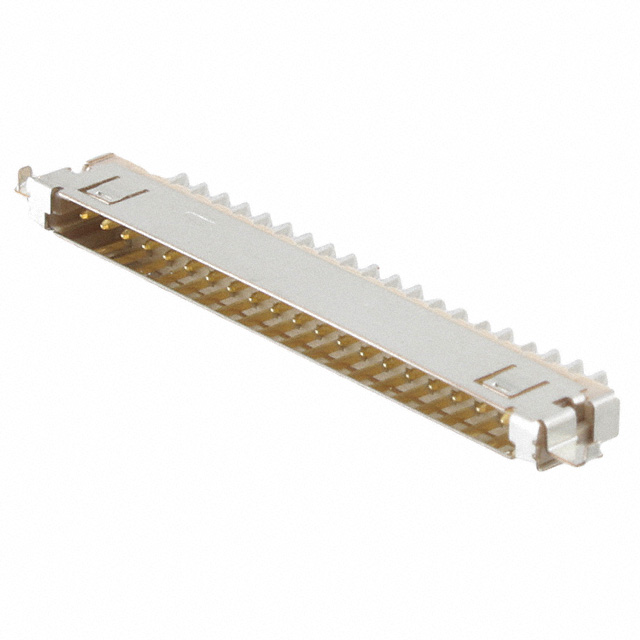

JAE Electronics FI-SEB20P-HF13E	0.077 "	1.95 mm	Board Edge Cutout Surface Mount Right Angle	Tin Tin-Alloy	Shrouded - 4 Wall	Copper Alloy	All	0.049 in	1.25 mm	Male Pin	Square	UL94 V-0	Receptacle	80 °C	-40 C	Shielded Solder Retention	Gold	1 A	Friction Lock	1	Board to Cable/Wire	20	Beige	200 V	Solder
JAE Electronics FI-SEB20P-HF13E-E3000	0.077 "	1.95 mm	Board Edge Cutout Surface Mount Right Angle	Tin Tin-Alloy	Shrouded - 4 Wall	Copper Alloy	All	0.049 in	1.25 mm	Male Pin	Square	UL94 V-0	Receptacle	80 °C	-40 C	Shielded Solder Retention	Gold	1 A	Friction Lock	1	Board to Cable/Wire	20	Beige	200 V	Solder
