97141 Series
Manufacturer: Pflitsch
Beta
⌘K

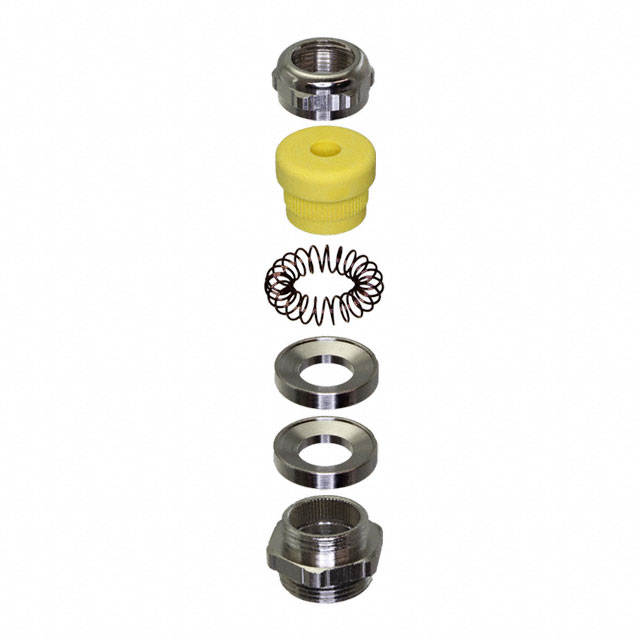

CABLE GLAND 4.06-6.6MM M25 BRASS
| Part | Includes | Thread Length | Thread Length | Type | Panel Hole Size | Panel Hole Size | Ingress Protection | Thread Size | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Material | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Color | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | Sealing Ring | 0.3 " | 7.62 mm | Cable Gland | 0.98 in | 24.9 mm | IP68 - Dust Tight Waterproof NEMA 4X | M25x1.5 | 6.6 mm | 0.26 in | Brass Nickel Plated | 4.06 mm | 0.16 in | Silver | -40 C | 300 °C |
