ECA-2AM Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUM 4.7UF 20% 100V RADIAL

Part	Voltage - Rated	Tolerance	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max)	Lifetime @ Temp.	Mounting Type	Polarization	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Applications	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECA-2AM4R7B	100 V	20 %	85 mA	0.472 in	12 mm	2000 Hrs	Through Hole	Polar	Can Radial	0.197 in	5 mm	85 °C	-40 C	4.7 µF	General Purpose	0.197 "	5 mm
Panasonic Electronic Components ECA-2AM2R2	100 V	20 %	51 mA	0.472 in	12 mm	2000 Hrs	Through Hole	Polar	Can Radial	0.197 in	5 mm	85 °C	-40 C	2.2 µF	General Purpose	0.079 in	2 mm	30 mA

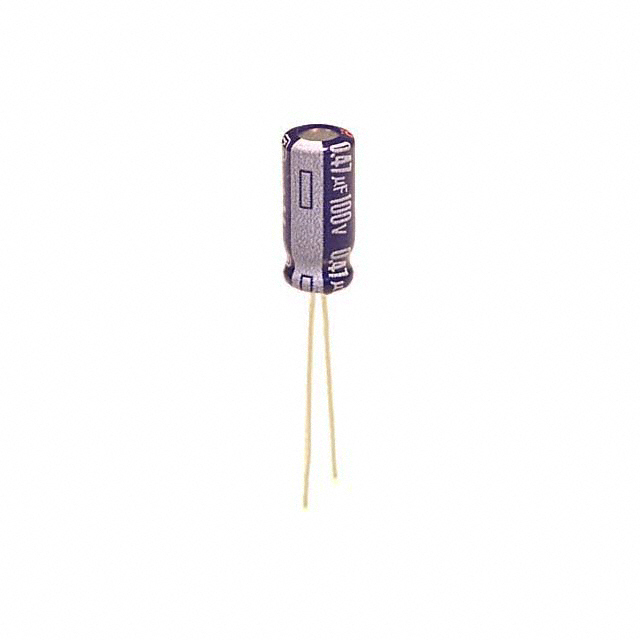

Panasonic Electronic Components ECA-2AMR47	100 V	20 %	17 mA	0.472 in	12 mm	2000 Hrs	Through Hole	Polar	Can Radial	0.197 in	5 mm	85 °C	-40 C	0.47 µF	General Purpose	0.079 in	2 mm
Panasonic Electronic Components ECA-2AM330B	100 V	20 %	246.5 mA			2000 Hrs	Through Hole	Polar	Can Radial	0.315 in	8 mm	85 °C	-40 C	33 ÁF	General Purpose	0.197 "	5 mm	145 mA	0.492 in	12.5 mm
Panasonic Electronic Components ECA-2AM2R2B	100 V	20 %	51 mA	0.472 in	12 mm	2000 Hrs	Through Hole	Polar	Can Radial	0.197 in	5 mm	85 °C	-40 C	2.2 µF	General Purpose	0.197 "	5 mm	30 mA
Panasonic Electronic Components ECA-2AM330	100 V	20 %	246.5 mA			2000 Hrs	Through Hole	Polar	Can Radial	0.315 in	8 mm	85 °C	-40 C	33 ÁF	General Purpose	0.138 in	3.5 mm	145 mA	0.492 in	12.5 mm

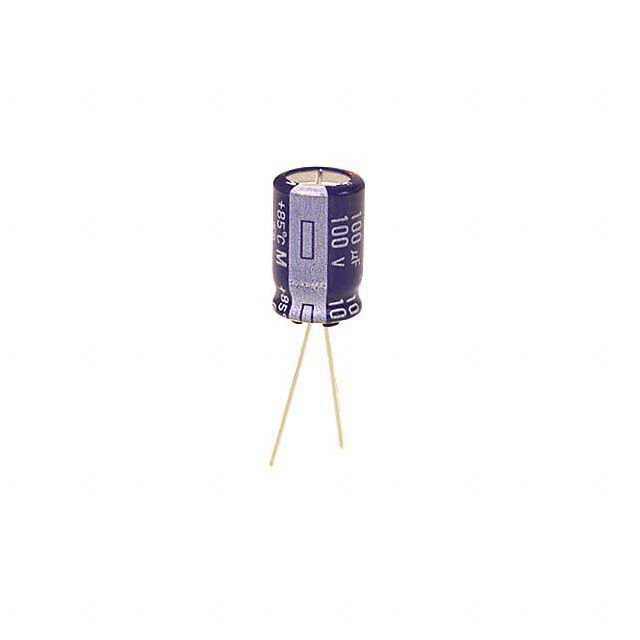

Panasonic Electronic Components ECA-2AM101	100 V	20 %	595 mA			2000 Hrs	Through Hole	Polar	Can Radial	0.394 in	10 mm	85 °C	-40 C	100 µF	General Purpose	0.197 "	5 mm	350 mA	17 mm		0.669 "

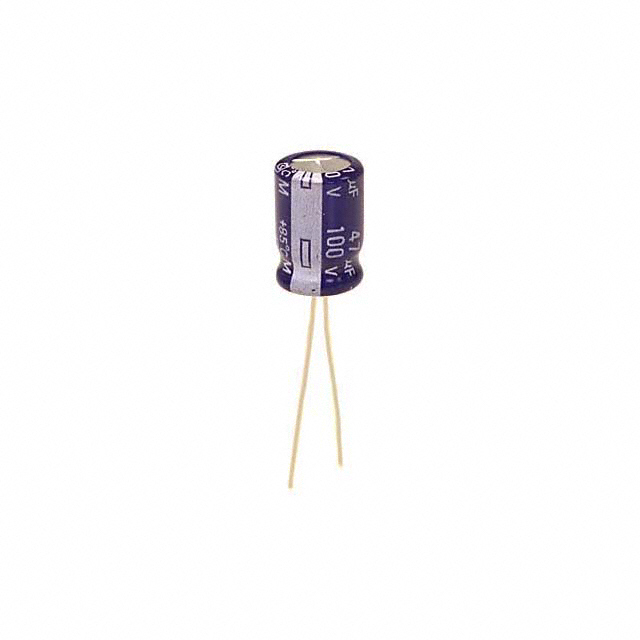

Panasonic Electronic Components ECA-2AM470	100 V	20 %	306 mA			2000 Hrs	Through Hole	Polar	Can Radial	0.315 in	8 mm	85 °C	-40 C	47 µF	General Purpose	0.138 in	3.5 mm	180 mA	0.492 in	12.5 mm

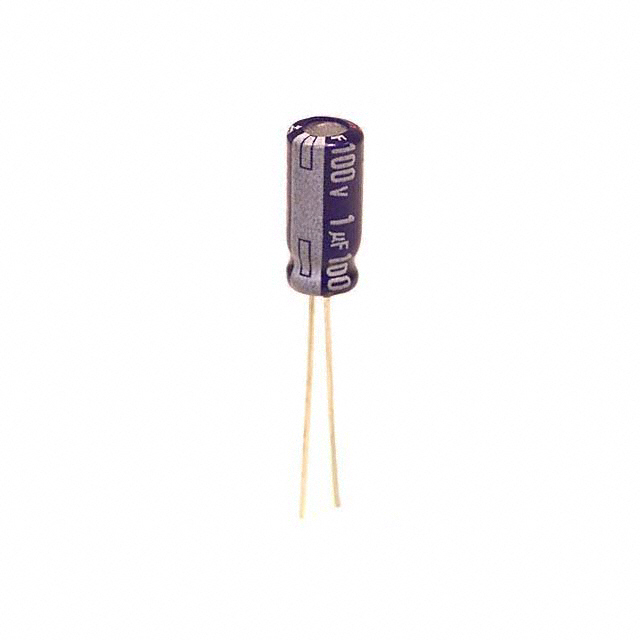

Panasonic Electronic Components ECA-2AM010	100 V	20 %	34 mA	0.472 in	12 mm	2000 Hrs	Through Hole	Polar	Can Radial	0.197 in	5 mm	85 °C	-40 C	1 µF	General Purpose	0.079 in	2 mm
Panasonic Electronic Components ECA-2AM4R7I	100 V	20 %	85 mA	0.472 in	12 mm	2000 Hrs	Through Hole	Polar	Can Radial	0.197 in	5 mm	85 °C	-40 C	4.7 µF	General Purpose	0.098 in	2.5 mm
