304-28 Series

Manufacturer: CNC Tech

Catalog

CBL RIBN 15COND 0.05 MULT 250'

Part	Conductor Material	Insulation Resistance	Number of Conductors	Wire Gauge	Voltage	Ribbon Width [custom]	Ribbon Width [custom]	Ratings	Shielding	Pitch	Pitch	Operating Temperature	Jacket (Insulation) Material	Jacket Color	Ribbon Thickness	Ribbon Thickness	Length	Length	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Number of Conductors [custom]
CNC Tech 304-28-15-MC-0250F	Copper Tinned	100 MOhms	15	28 AWG	300 VDC	19.05 mm	0.75 in	UL Style 2651	Unshielded	0.05 in	1.27 mm	105 C	Poly-Vinyl Chloride (PVC)	Multiple	0.89 mm	0.035 in	76.2 m	250 ft	Flat Cable	36 AWG	7 Strands
CNC Tech 304-28-15-MC-0100F	Copper Tinned	100 MOhms	15	28 AWG	300 VDC	19.05 mm	0.75 in	UL Style 2651	Unshielded	0.05 in	1.27 mm	105 C	Poly-Vinyl Chloride (PVC)	Multiple	0.89 mm	0.035 in	30.48 m	100 '	Flat Cable	36 AWG	7 Strands
CNC Tech 304-28-09-MC-0100F	Copper Tinned	100 MOhms	9	28 AWG	300 VDC	11.43 mm	0.45 in	UL Style 2651	Unshielded	0.05 in	1.27 mm	105 C	Poly-Vinyl Chloride (PVC)	Multiple	0.89 mm	0.035 in	30.48 m	100 '	Flat Cable	36 AWG	7 Strands

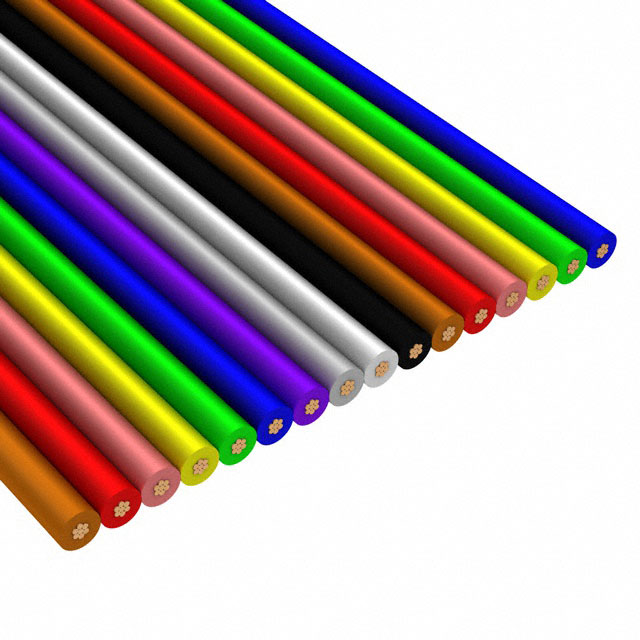

CNC Tech 304-28-16-MC-0250F	Copper Tinned	100 MOhms	16	28 AWG	300 VDC	20.32 mm	0.8 in	UL Style 2651	Unshielded	0.05 in	1.27 mm	105 C	Poly-Vinyl Chloride (PVC)	Multiple	0.89 mm	0.035 in	3.05 m 76.2 m	10 ft 250 ft	Flat Cable	36 AWG	7 Strands	50 ft	15.24 m

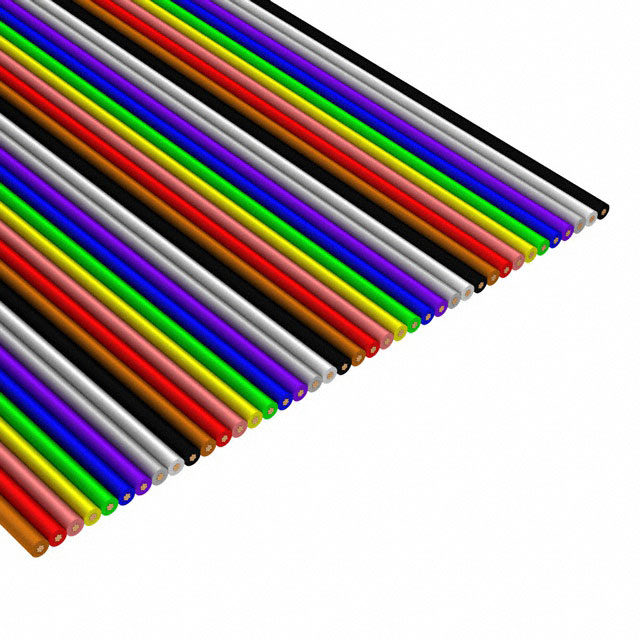

CNC Tech 304-28-40-MC-0100F	Copper Tinned	100 MOhms	40	28 AWG	300 VDC	50.8 mm	2 in	UL Style 2651	Unshielded	0.05 in	1.27 mm	105 C	Poly-Vinyl Chloride (PVC)	Multiple	0.89 mm	0.035 in	30.48 m	100 '	Flat Cable	36 AWG	7 Strands
CNC Tech 304-28-30-MC-0300F	Copper Tinned	100 MOhms	30	28 AWG	300 VDC	38.1 mm	1.5 in	UL Style 2651	Unshielded	0.05 in	1.27 mm	105 C	Poly-Vinyl Chloride (PVC)	Multiple	0.89 mm	0.035 in	91440 mm	3600 in	Flat Cable	36 AWG	7 Strands
CNC Tech 304-28-10-MC-0300F	Copper Tinned	100 MOhms		28 AWG	300 VDC	12.7 mm	0.5 in	UL Style 2651	Unshielded	0.05 in	1.27 mm	105 C	Poly-Vinyl Chloride (PVC)	Multiple	0.89 mm	0.035 in	91440 mm	3600 in	Flat Cable	36 AWG	7 Strands			10

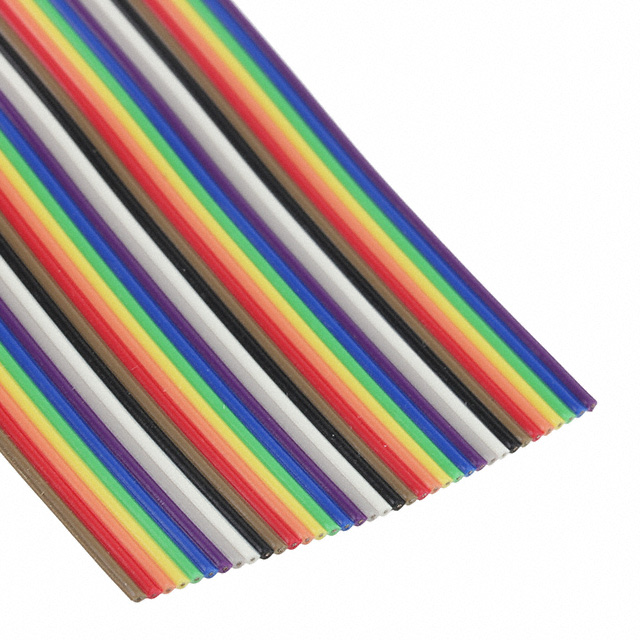

CNC Tech 304-28-37-MC-0250F	Copper Tinned	100 MOhms	37	28 AWG	300 VDC	46.99 mm	1.85 in	UL Style 2651	Unshielded	0.05 in	1.27 mm	105 C	Poly-Vinyl Chloride (PVC)	Multiple	0.89 mm	0.035 in	76.2 m	250 ft	Flat Cable	36 AWG	7 Strands
CNC Tech 304-28-20-MC-0300F	Copper Tinned	100 MOhms	20	28 AWG	300 VDC	25.4 mm	1 in	UL Style 2651	Unshielded	0.05 in	1.27 mm	105 C	Poly-Vinyl Chloride (PVC)	Multiple	0.89 mm	0.035 in	91440 mm	3600 in	Flat Cable	36 AWG	7 Strands
CNC Tech 304-28-44-MC-0300F	Copper Tinned	100 MOhms	44	28 AWG	300 VDC			UL Style 2651	Unshielded	0.05 in	1.27 mm	105 C	Poly-Vinyl Chloride (PVC)	Multiple	0.89 mm	0.035 in	91440 mm	3600 in	Flat Cable	36 AWG	7 Strands
