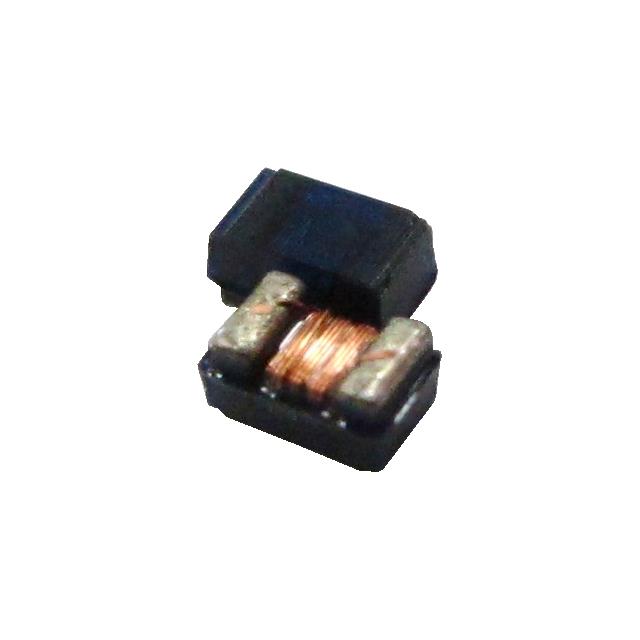

BWLM Series

Catalog

RF INDUCTORS - SMD CHILISIN RF INDUCTOR WIRE WOUND-STD

Part	DC Resistance (DCR) [Max]	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Inductance	Inductance Frequency - Test	Type	Material - Core	Current Rating (Amps)	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Frequency - Self Resonant	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Pulse Electronics BWLM00181009R56J00	480 mOhm	Unshielded	125 °C	-40 C	Surface Mount	560 nH	100 MHz	Drum Core Wirewound	Ferrite	0.45 A	Nonstandard	0.039 in	1 mm	5 %	540 MHz	0.039 in	1.8 mm	0.071 "	1 mm
Pulse Electronics BWLM00181009R33J00	250 mOhm	Unshielded	125 °C	-40 C	Surface Mount	330 nH	100 MHz	Drum Core Wirewound	Ferrite	0.63 A	Nonstandard	0.039 in	1 mm	5 %	600 MHz	0.039 in	1.8 mm	0.071 "	1 mm
Pulse Electronics BWLM00181009R65J00	520 mOhm	Unshielded	125 °C	-40 C	Surface Mount	650 nH	100 MHz	Drum Core Wirewound	Ferrite	430 mA	Nonstandard	0.039 in	1 mm	5 %		0.039 in	1.8 mm	0.071 "	1 mm
