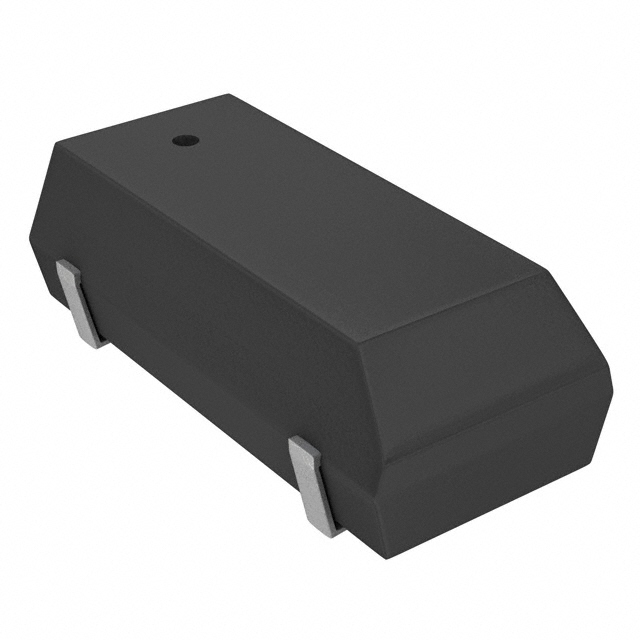

ABS25 Series

Catalog

CRYSTAL 32.7680KHZ 12.5PF SMD

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Load Capacitance	Frequency Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Operating Mode	ESR (Equivalent Series Resistance)	Package / Case	Package / Case	Frequency	Size / Dimension [x]	Size / Dimension [y]	Type	Height - Seated (Max) [z]	Height - Seated (Max) [z]	Mounting Type
Abracon LLC ABS25-32.768KHZ-1-T	0.098 in	2.5 mm	12.5 pF	10 ppm	85 °C	-40 C	Fundamental	50 kOhms	4-SOJ	5.5 mm	0.032768 MHz	0.315 in 8 mm	0.15 in 3.8 mm	kHz Crystal (Tuning Fork)	2.6 mm	0.102 in	Surface Mount
