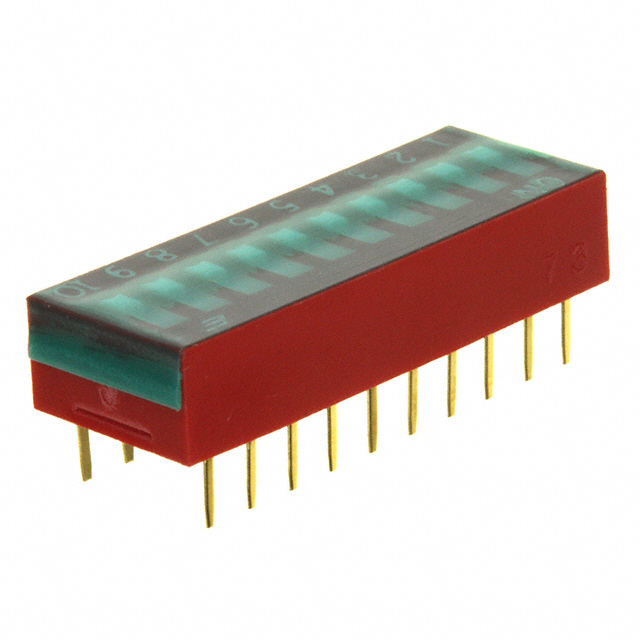

KAS1110 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Body Material | Electrical Life | Length | Length | Mechanical Life | Number of Positions | Termination Style | Height Above Board [z] | Height Above Board [z] | Contact Finish | Circuit | Actuator Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Actuator Level | Current Rating (Amps) | Pitch | Pitch | Contact Material | Washable | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Polybutylene Terephthalate (PBT) Glass Filled | 2000 Steps | 1.054 in | 26.76 mm | 2000 Cycles | 10 | PC Pin | 0.236 in | 6 mm | Gold | SPST | Slide (Standard) | Tape Seal | 85 °C | -40 C | 24 VDC | Flush Recessed | 25 mA | 2.54 mm | 0.1 " | Phosphor Bronze | Through Hole |
