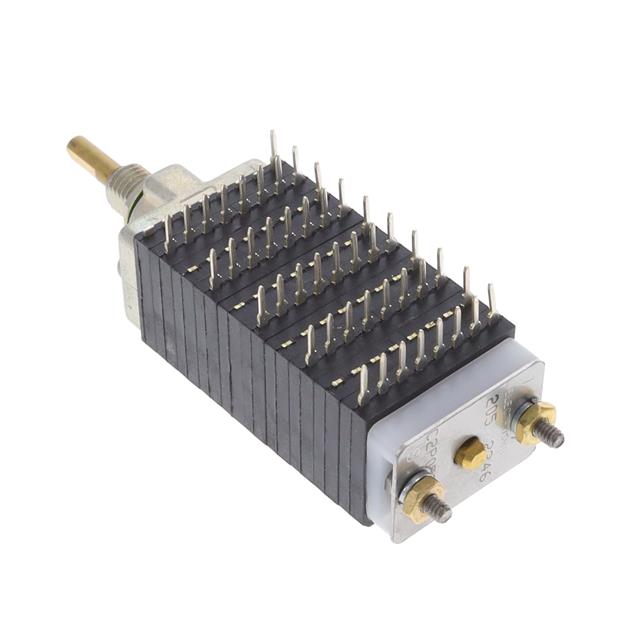

C2P0508 Series
Manufacturer: Electroswitch
Beta
⌘K
SWITCH ROTARY 2-8POS 100MA 125V
| Part | Panel Cutout Dimensions [diameter] | Termination Style | Voltage Rating - AC | Contact Timing | Current Rating (Amps) | Circuit per Deck | Actuator Length [x] | Actuator Type | Mounting Type | Voltage Rating - DC | Depth Behind Panel [z] | Angle of Throw | Number of Poles per Deck | Contact Finish | Contact Material | Number of Decks | Index Stops |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 6.76 mm | PC Pin | 125 V | Non-Shorting (BBM) | 100 mA 250 mA | SP8T | 9.52 mm | Flatted (3.17mm Dia) | Panel Mount Right Angle Through Hole | 28 V | 52.86 mm | 30 ° | 1 | Silver | Brass | 5 | Adjustable |
 Electroswitch | 6.76 mm | PC Pin | 125 V | Shorting (MBB) | 100 mA 250 mA | SP8T | 9.52 mm | Flatted (3.17mm Dia) | Panel Mount Right Angle Through Hole | 28 V | 52.86 mm | 30 ° | 1 | Silver | Brass | 5 | Adjustable |
