1001-1571 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

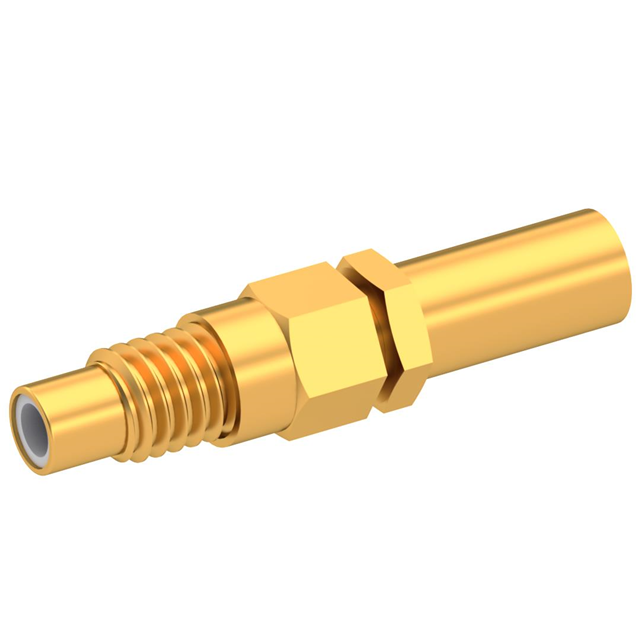

SMC / STRAIGHT JACK MALE CRIMP T
| Part | Center Contact Plating | Dielectric Material | Mating Cycles | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Body Material | Center Contact Material | Impedance | Shield Termination | Cable Group | Connector Style | Housing Color | Number of Ports | Connector Type | Mounting Type | Contact Termination | Frequency - Max [Max] | Fastening Type | Voltage Rating | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | 0.25 dB | Brass | Brass | 50 Ohms | Crimp | RG-180 | SMC | Gold | 1 | Jack Male Pin | Free Hanging (In-Line) | Crimp | 10 GHz | Threaded | ||
Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | 0.25 dB | Brass | Brass | 50 Ohms | Crimp | RG-178 | SMC | Gold | 1 | Jack Male Pin | Free Hanging (In-Line) | Solder | 10 GHz | Threaded | 250 V | 196 |
Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | 0.25 dB | Brass | Brass | 50 Ohms | Crimp | RG-174 RG-179 RG-316 | SMC | Gold | 1 | Jack Male Pin | Free Hanging (In-Line) | Crimp | 10 GHz | Threaded | 335 V |
