VE-260 Series

Catalog

DC DC CONVERTER 5V 200W

Part	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Features	Applications	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output 1	Efficiency
Vicor Corporation VE-260-EU	Through Hole	200 V	40 A	-10 °C	85 °C	Isolated Module	3000 V	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	200 W	OCP OTP OVP SCP	ITE (Commercial)	Full Brick	1	400 V	5 V	88 %
Vicor Corporation VE-260-CY	Through Hole	200 V	10 A	-25 °C	85 °C	Isolated Module	3000 V	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	50 W	OCP OTP OVP SCP	ITE (Commercial)	Full Brick	1	400 V	5 V	90 %
Vicor Corporation VE-260-CU	Through Hole	200 V	40 A	-25 °C	85 °C	Isolated Module	3000 V	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	200 W	OCP OTP OVP SCP	ITE (Commercial)	Full Brick	1	400 V	5 V	90 %

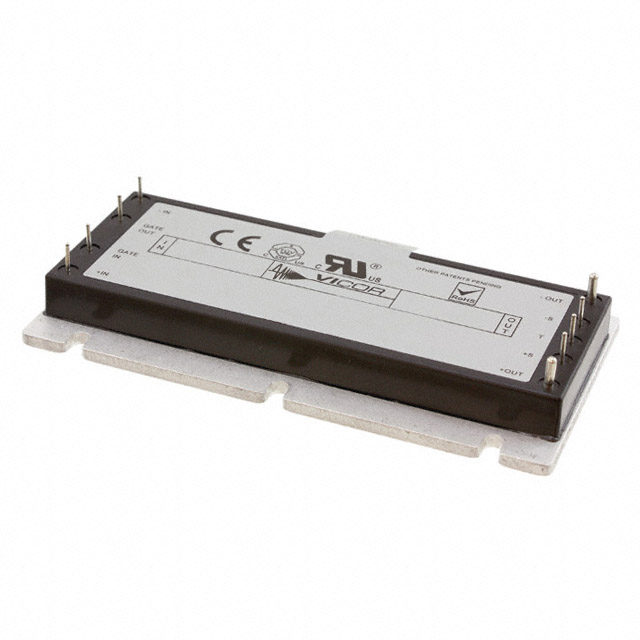

Vicor Corporation VE-260-CV	Through Hole	200 V	30 A	-25 °C	85 °C	Isolated Module	3000 V	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	150 W	OCP OTP OVP SCP	ITE (Commercial)	Full Brick	1	400 V	5 V	90 %
Vicor Corporation VE-260-IV	Through Hole	200 V	30 A	-40 °C	85 °C	Isolated Module	3000 V	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	150 W	OCP OTP OVP SCP	ITE (Commercial)	Full Brick	1	400 V	5 V	90 %
Vicor Corporation VE-260-CW-F4	Through Hole	200 V	20 A	-25 °C	85 °C	Isolated Module	3000 V	1.05 "	4.6 "	116.8 mm	26.7 mm	1.86 "	47.2 mm	100 W	OCP OTP OVP SCP	ITE (Commercial)	Full Brick	1	400 V	5 V	90 %
Vicor Corporation VE-260-MY	Through Hole	200 V	10 A	-55 °C	85 °C	Isolated Module	3000 V	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	50 W	OCP OTP OVP SCP	ITE (Commercial)	Full Brick	1	400 V	5 V	90 %
