NYW04010005 Series
Manufacturer: YS TECH USA
Beta
⌘K

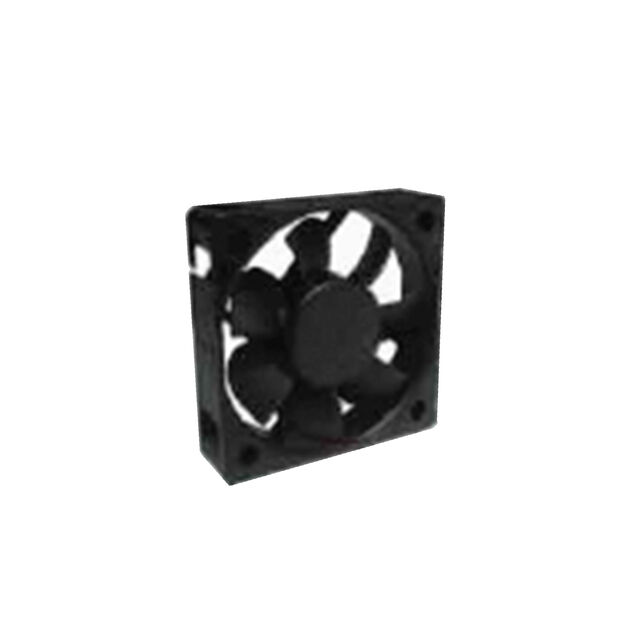

FAN AXIAL 40X10.5MM 5VDC WIRE
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Lifetime @ Temp. | Air Flow | Air Flow | Static Pressure | Static Pressure | Termination | Width [y] | RPM | Voltage - Rated | Noise | Fan Type | Bearing Type | Power (Watts) | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YS TECH USA | Polybutylene Terephthalate (PBT) | 5.5 V | 4 VDC | 70 mA | 40 °C 50000 Hrs | 0.143 m³/min | 5.1 CFM | 0.067 in H2O | 16.7 Pa | 2 Wire Leads | 10.5 mm | 5000 RPM | 5 V | 17.5 dB(A) | Tubeaxial | Sintec | 350 mW | 40 mm | 40 mm |
