IDPV-25 Series

Catalog

LED POWER SUPPLIES 21.6W 12V 1.8

Part	Mounting Type	Termination Style	Voltage - Output	Voltage - Input (Max) [Max]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Efficiency	Type	Voltage - Isolation	Topology	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Dimming	Number of Outputs

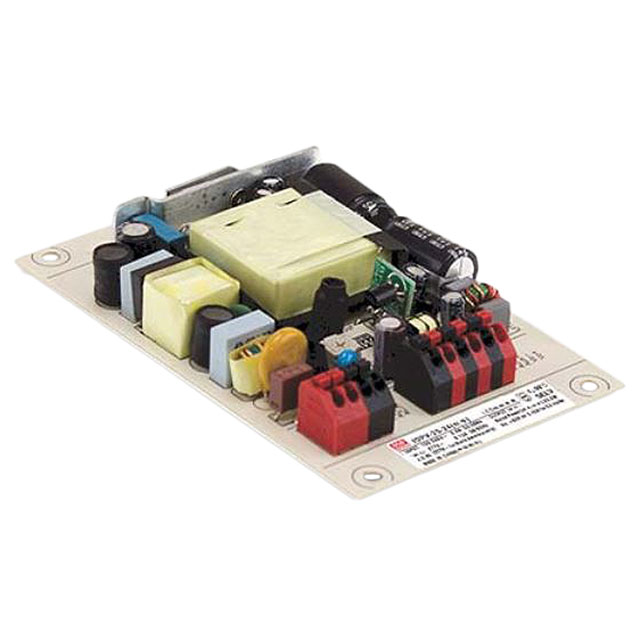

MEAN WELL USA Inc. IDPV-25A-12	Chassis Mount	Terminal Block	12 V	295 VAC	22 W	0.79 in	4.51 in	2.85 in	72.5 mm	20 mm	114.5 mm	OCP SCP	80 %	Constant Voltage	3750 VDC	AC DC Converter	CB CCC CE cURus ENEC	45 °C	-20 ░C	90 VAC	1.8 A	PWM	1
MEAN WELL USA Inc. IDPV-25-36	Chassis Mount	Terminal Block	36 V	295 VAC	25 W	0.79 in	4.51 in	2.85 in	72.5 mm	20 mm	114.5 mm	OCP SCP		Constant Voltage	3750 VDC	AC DC Converter	CB CCC CE cURus ENEC	45 °C	-20 ░C	90 VAC	700 mA	Analog PWM	1
MEAN WELL USA Inc. IDPV-25A-48	Chassis Mount	Terminal Block	48 V	295 VAC	25 W	0.79 in	4.51 in	2.85 in	72.5 mm	20 mm	114.5 mm	OCP SCP	83 %	Constant Voltage	3750 VDC	AC DC Converter	CB CCC CE cURus ENEC	45 °C	-20 ░C	90 VAC	520 mA	Analog PWM	1
MEAN WELL USA Inc. IDPV-25A-24	Chassis Mount	Terminal Block	24 V	295 VAC	25 W	0.79 in	4.51 in	2.85 in	72.5 mm	20 mm	114.5 mm	OCP SCP	81 %	Constant Voltage	3750 VDC	AC DC Converter	CB CCC CE cURus ENEC	45 °C	-20 ░C	90 VAC	1.05 A	PWM	1
MEAN WELL USA Inc. IDPV-25-24	Chassis Mount	Terminal Block	24 V	295 VAC	25 W	0.79 in	4.51 in	2.85 in	72.5 mm	20 mm	114.5 mm	OCP SCP	81 %	Constant Voltage	3750 VDC	AC DC Converter	CB CCC CE cURus ENEC	45 °C	-20 ░C	90 VAC	1.05 A	PWM	1
MEAN WELL USA Inc. IDPV-25-48	Chassis Mount	Terminal Block	48 V	295 VAC	25 W	0.79 in	4.51 in	2.85 in	72.5 mm	20 mm	114.5 mm	OCP SCP	83 %	Constant Voltage	3750 VDC	AC DC Converter	CB CCC CE cURus ENEC	45 °C	-20 ░C	90 VAC	520 mA	Analog PWM	1
MEAN WELL USA Inc. IDPV-25A-36	Chassis Mount	Terminal Block	36 V	295 VAC	25 W	0.79 in	4.51 in	2.85 in	72.5 mm	20 mm	114.5 mm	OCP SCP		Constant Voltage	3750 VDC	AC DC Converter	CB CCC CE cURus ENEC	45 °C	-20 ░C	90 VAC	700 mA	Analog PWM	1
