171I Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 6.88"L X 4.88"W

Part	Weight	Weight	Container Type	Area (L x W)	Area (L x W)	Material Flammability Rating	Color	Thickness	Thickness	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height	Height	Ratings	Design	Material

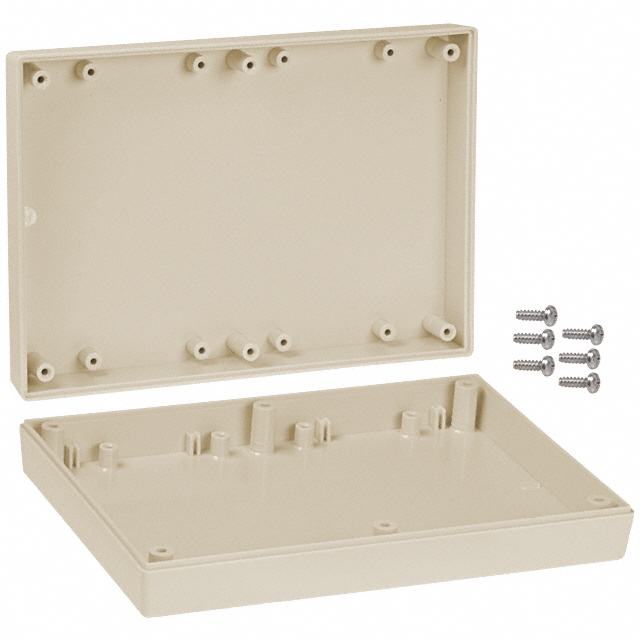

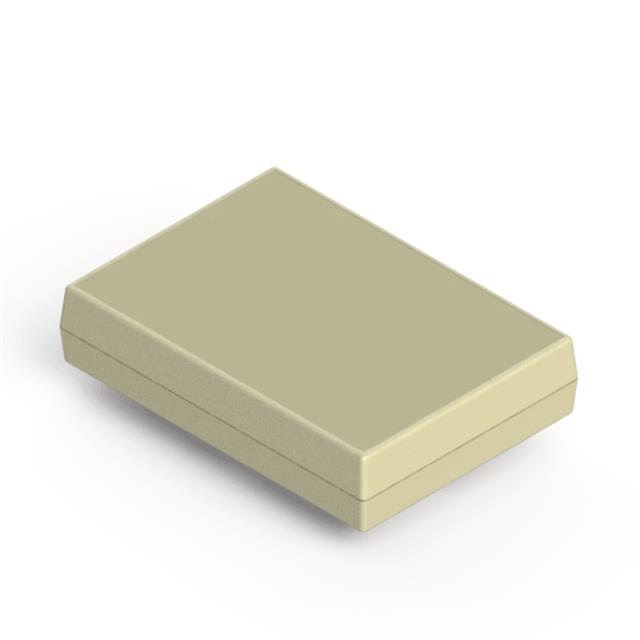

Serpac 171I,AL	181.44 g	0.4 lb	Box	217 cm²	33.6 in²	UL94 HB	Almond	2.54 mm	0.1 in	PCB Supports	6.88 in	123.95 mm	174.75 mm	4.88 in	1.5 in	38.1 mm	IP40 NEMA 1	Hand Held Split Sides	ABS Plastic

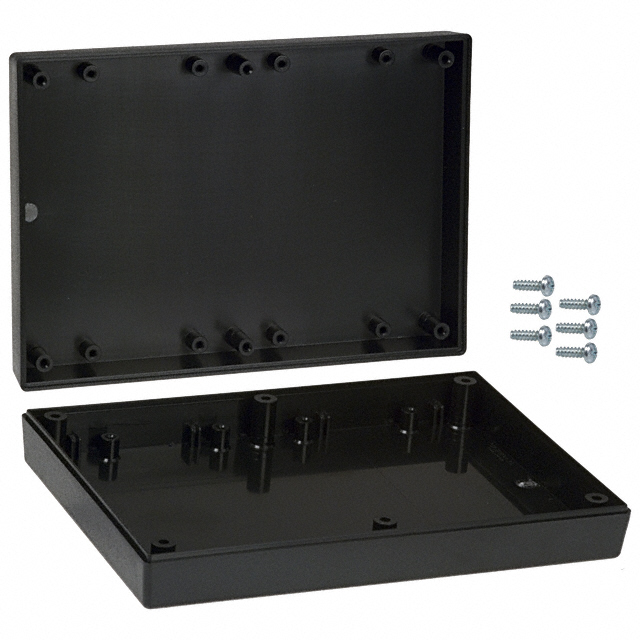

Serpac 171I,BK	181.44 g	0.4 lb	Box	217 cm²	33.6 in²	UL94 HB	Black	2.54 mm	0.1 in	PCB Supports	6.88 in	123.95 mm	174.75 mm	4.88 in	1.5 in	38.1 mm	IP40 NEMA 1	Hand Held Split Sides	ABS Plastic

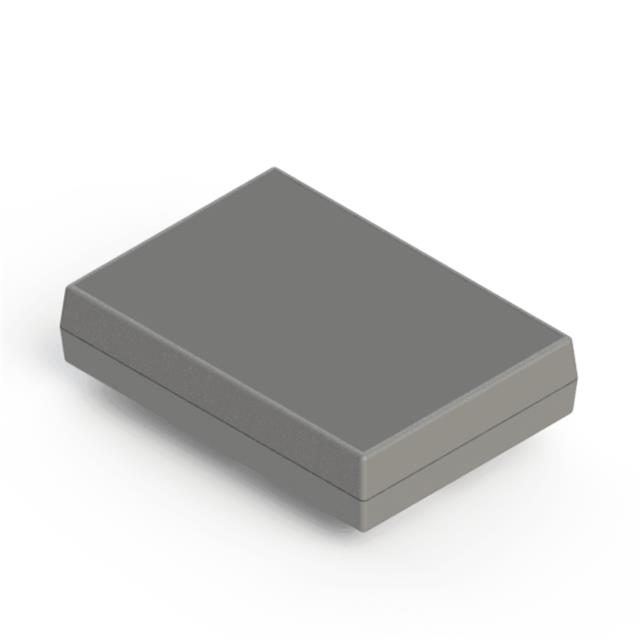

Serpac 171I,GY	181.44 g	0.4 lb	Box	217 cm²	33.6 in²	UL94 HB	Gray	2.54 mm	0.1 in	PCB Supports	6.88 in	123.95 mm	174.75 mm	4.88 in	1.5 in	38.1 mm	IP40 NEMA 1	Hand Held Split Sides	ABS Plastic
