WR-160S Series

Catalog

CONN RCPT 160POS SMD GOLD

Part	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Rows [custom]	Contact Finish	Mounting Type	Connector Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Height Above Board [z]	Height Above Board [z]

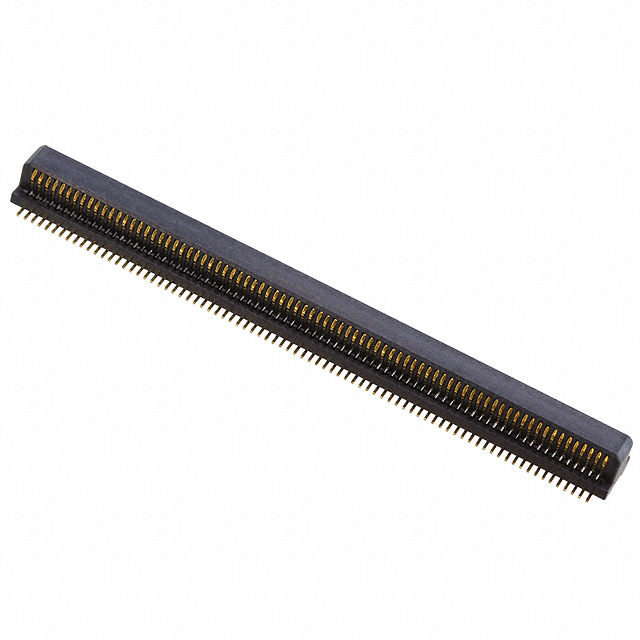

JAE Electronics WR-160S-VF-N1	0.128 in	3.25 mm	4 mm 5 mm 6 mm	2	Gold	Surface Mount	Receptacle Center Strip Contacts	0.02 "	0.5 mm	0.1 Ám	4 Áin	160
JAE Electronics WR-160SB-VF-N1-R1500	0.128 in	3.25 mm	4 mm 5 mm 6 mm	2	Gold	Surface Mount	Receptacle Center Strip Contacts	0.02 "	0.5 mm	0.1 Ám	4 Áin	160	Board Guide

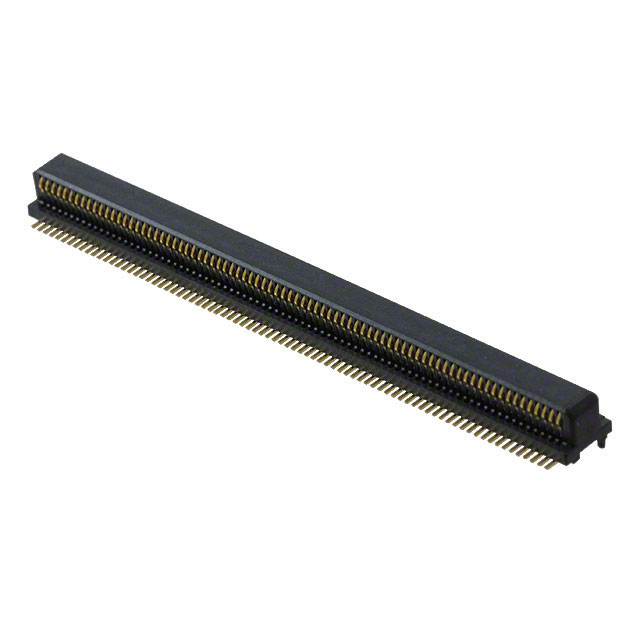

JAE Electronics WR-160SB-VF-N1	0.128 in	3.25 mm	4 mm 5 mm 6 mm	2	Gold	Surface Mount	Receptacle Center Strip Contacts	0.02 "	0.5 mm	0.1 Ám	4 Áin	160	Board Guide

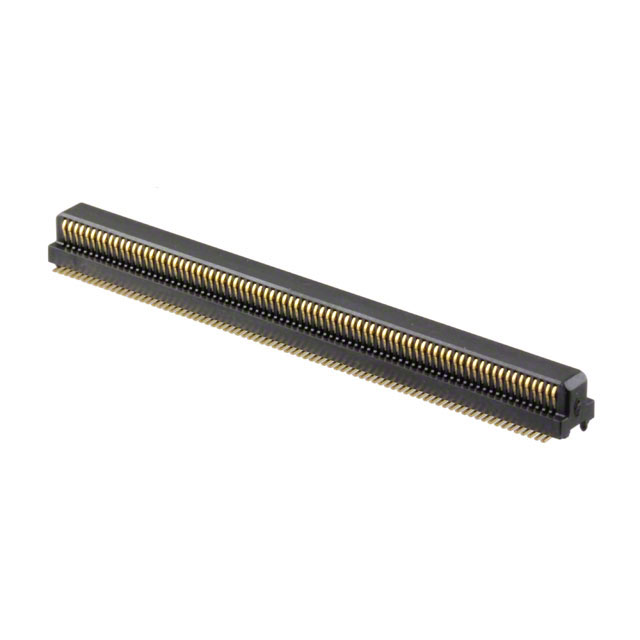

JAE Electronics WR-160SB-VFH05-N1-R1500			4.5 mm 5.5 mm 6.5 mm	2	Gold	Surface Mount	Receptacle Center Strip Contacts	0.02 "	0.5 mm	0.1 Ám	4 Áin	160	Board Guide	0.148 in	3.75 mm
