LCR-U01602 Series

Catalog

LCD MOD 32DIG 16X2 TRANSFLCT WHT

Part	Number of Characters	Display Format [x]	Display Format [y]	Outline L x W x H [y]	Outline L x W x H [x]	Outline L x W x H [z]	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Character Size [y]	Character Size [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Background Color	Viewing Area [y]	Viewing Area [x]	Display Type	Display Mode	Character Format	Character Format [y]	Character Format [x]	Dot Size [y]	Dot Size [x]	Backlight	Character Size [z]

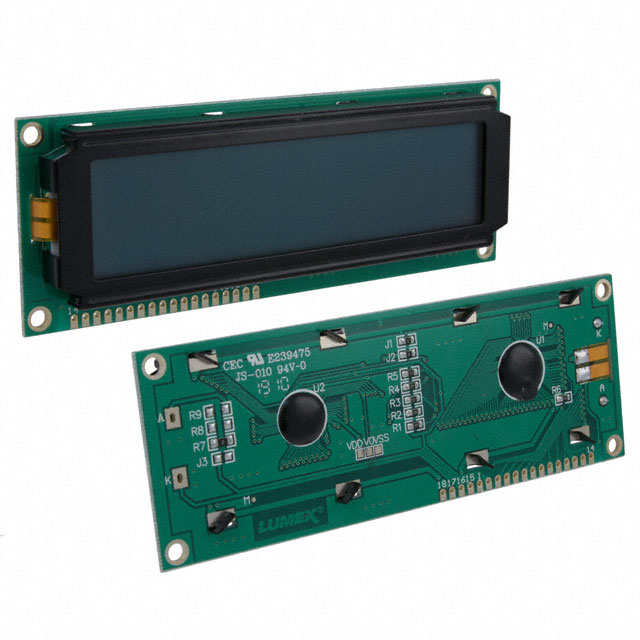

Lumex Opto/Components Inc. LCR-U01602DSF/DWH	32	16	2	44 mm	122 mm	10.6 mm	85 °C	-40 C	Parallel	4.84 mm	9.66 mm	4.7 V	5.3 V	Green	24 mm	99 mm	STN - Super-Twisted Nematic	Transflective	Cursor	7 Dots	5 Dots	1.1 mm	0.92 mm	LED - White

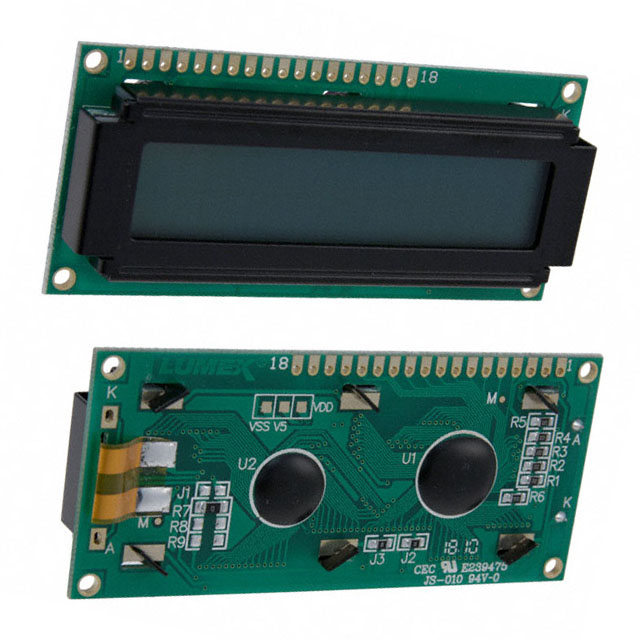

Lumex Opto/Components Inc. LCR-U01602DSF/AWH	32	16	2	36 mm	80 mm	9.9 mm	85 °C	-40 C	Parallel	2.8 mm		4.7 V	5.3 V	Green	14 mm	64 mm	STN - Super-Twisted Nematic	Transflective		8 Dots	5 Dots			LED - White	4.35 mm
