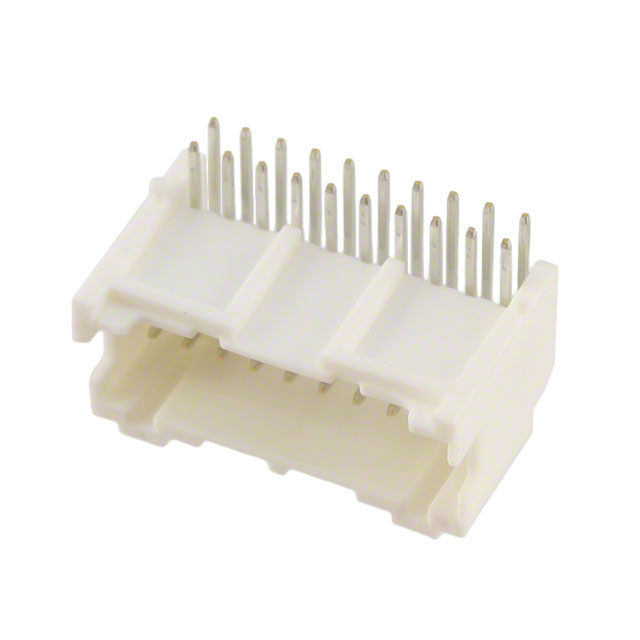

S20B-PAD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 20POS 2MM
| Part | Contact Material | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Positions | Insulation Material | Contact Type | Fastening Type | Shrouding | Number of Positions Loaded | Current Rating (Amps) | Number of Rows [custom] | Mounting Type | Connector Type | Features | Material Flammability Rating | Insulation Color | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Style | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post | Contact Length - Post | Termination | Voltage Rating | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Copper Alloy | 0.079 " | 2 mm | 0.413 in | 10.49 mm | 20 | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin | Locking Ramp | Shrouded - 4 Wall | All | 3 A | 2 | Right Angle Through Hole | Header | Board Guide | UL94 V-0 | Natural | Tin | 2 mm | 0.079 in | Board to Cable/Wire | 85 °C | -25 °C | 0.118 in | 3 mm | Solder | 250 V | Square |
