BDHE Series

Catalog

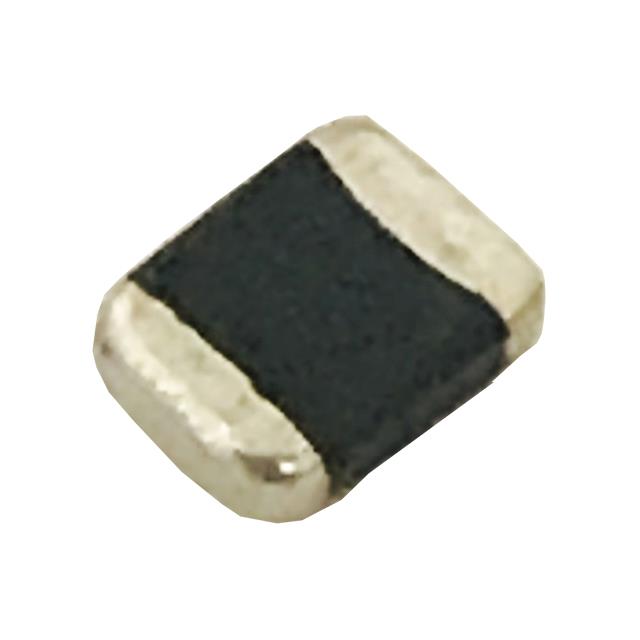

POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) CLOSED MAGNETIC CIRCUIT TYPEMOLDING PROCESSING & FOR ULTRA HIGH CURRENT

Part	Current - Saturation (Isat)	Inductance Frequency - Test	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	Tolerance	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Package / Case
Pulse Electronics BDHE002016121R0MQ1	3.2 A	2 MHz	Molded	Surface Mount	125 °C	-40 C	0806 (2016 Metric)	0806	20 %	3 A	1.6 mm	0.079 in	0.063 "	2 mm	Unshielded	1.2 mm	0.047 "	1 µH
Pulse Electronics BDHE00322510R33MQ1	8 A	2 MHz	Molded	Surface Mount	125 °C	-40 C	1210	1210	20 %	5.8 A	2.5 mm	0.126 "	0.098 in	3.2 mm	Unshielded			330 nH	0.039 in	1 mm	17 mOhm	3225 Metric
