AJM90 Series

Manufacturer: XP Power

Catalog

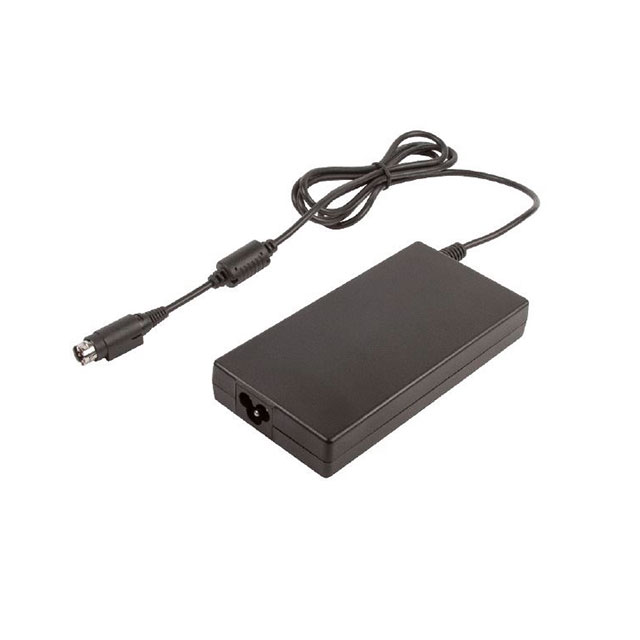

AC/DC DESKTOP ADAPTER 24V 90W

Part	Weight	Weight	Input Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	No Load Power Consumption	Input Type	Cord Length	Cord Length	Operating Temperature [Max]	Output Connector	Efficiency	Region Utilized	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Current - Output (Max) [Max]	Applications	Power (Watts)	Form	Current - Output (Max)
XP Power AJM90PS24C2	0.772 lb	350.17 g	IEC 320-C8	5.51 in	71 mm	0.87 in	2.8 in	140 mm	22 mm	210 mW	Cord (Sold Separately)	1.5 m	59 in	60 °C	Power DIN 4 Pin	Level VI	International	24 V	80 VAC	264 VAC	CB	3.75 A	ITE (Commercial)	90 W	Desktop (Class II)
XP Power AJM90PS18C2	0.772 lb	350.17 g	IEC 320-C8	5.51 in	71 mm	0.87 in	2.8 in	140 mm	22 mm	210 mW	Cord (Sold Separately)	1.5 m	59 in	60 °C	Power DIN 4 Pin	Level VI	International	18 V	80 VAC	264 VAC	CB		ITE (Commercial)	90 W	Desktop (Class II)	5 A
XP Power AJM90PS19C2	0.772 lb	350.17 g	IEC 320-C8	5.51 in	71 mm	0.87 in	2.8 in	140 mm	22 mm	210 mW	Cord (Sold Separately)	1.5 m	59 in	60 °C	Power DIN 4 Pin	Level VI	International	19 V	80 VAC	264 VAC	CB		ITE (Commercial)	90 W	Desktop (Class II)
XP Power AJM90PS12C2	0.772 lb	350.17 g	IEC 320-C8	5.51 in	71 mm	0.87 in	2.8 in	140 mm	22 mm	210 mW	Cord (Sold Separately)	1.5 m	59 in	60 °C	Power DIN 4 Pin	Level VI	International	12 V	80 VAC	264 VAC	CB	7.5 A	ITE (Commercial)	90 W	Desktop (Class II)
