ULS-3.3 Series

Catalog

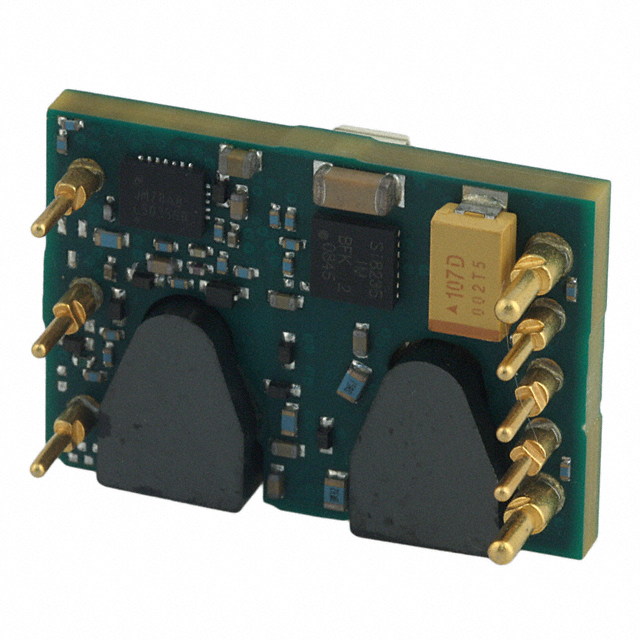

DC DC CONVERTER 3.3V 27W

Part	Efficiency	Number of Outputs	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Features	Mounting Type	Type	Package / Case	Control Features	Applications	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Isolation
Murata Electronics ULS-3.3/8-D48N-C	90 %	1	3.3 V	85 °C	-40 C	27 W	33 mm	1.3 in	0.4 "	22.9 mm	10.2 mm	0.9 in	OTP OVP Remote On/Off SCP UVLO	Through Hole	Isolated Module	8-DIP Module 1/16 Brick	Active Low Enable	ITE (Commercial)	36 V	8 A	75 V	2250 VDC
Murata Electronics ULS-3.3/30-D48NH-C	91 %	1	3.3 V	85 °C	-40 C	100 W	33 mm	1.3 in	0.4 "	22.9 mm	10.2 mm	0.9 in	OTP OVP Remote On/Off SCP UVLO	Through Hole	Isolated Module	8-DIP Module 1/16 Brick	Active Low Enable	ITE (Commercial)	36 V	30 A	75 V	2250 VDC
Murata Electronics ULS-3.3/30-D48PH-C	91 %	1	3.3 V	85 °C	-40 C	100 W	33 mm	1.3 in	0.4 "	22.9 mm	10.2 mm	0.9 in	OTP OVP Remote On/Off SCP UVLO	Through Hole	Isolated Module	8-DIP Module 1/16 Brick	Active High Enable	ITE (Commercial)	36 V	30 A	75 V	2250 VDC
Murata Electronics ULS-3.3/20-D48NH-C	90 %	1	3.3 V	85 °C	-40 C	66 W	33 mm	1.3 in	0.4 "	22.9 mm	10.2 mm	0.9 in	OTP OVP Remote On/Off SCP UVLO	Through Hole	Isolated Module	8-DIP Module 1/16 Brick	Active Low Enable	ITE (Commercial)	36 V	20 A	75 V	2250 VDC
Murata Electronics ULS-3.3/30-D48N-C	91 %	1	3.3 V	85 °C	-40 C	100 W	33 mm	1.3 in	0.4 "	22.9 mm	10.2 mm	0.9 in	OTP OVP Remote On/Off SCP UVLO	Through Hole	Isolated Module	8-DIP Module 1/16 Brick	Active Low Enable	ITE (Commercial)	36 V	30 A	75 V	2250 VDC
