BSZ0589 Series
Manufacturer: INFINEON
Catalog

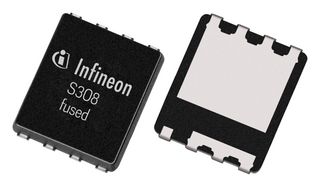

OPTIMOS™ 5 N-CHANNEL POWER MOSFET 30 V ; PQFN 3.3 X 3.3 FUSED LEAD PACKAGE; 4.4 MOHM;
| Part | Vgs(th) (Max) @ Id | Operating Temperature [Max] | Operating Temperature [Min] | FET Type | Drain to Source Voltage (Vdss) | Technology | Gate Charge (Qg) (Max) @ Vgs | Mounting Type | Rds On (Max) @ Id, Vgs | Vgs (Max) | Drive Voltage (Max Rds On, Min Rds On) | Package / Case | Power Dissipation (Max) | Current - Continuous Drain (Id) @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 2 V | 150 °C | -55 °C | N-Channel | 30 V | MOSFET (Metal Oxide) | 15 nC | Surface Mount | 4.4 mOhm | 20 V | 4.5 V 10 V | 8-PowerTDFN | 2.1 W | 17 A |
