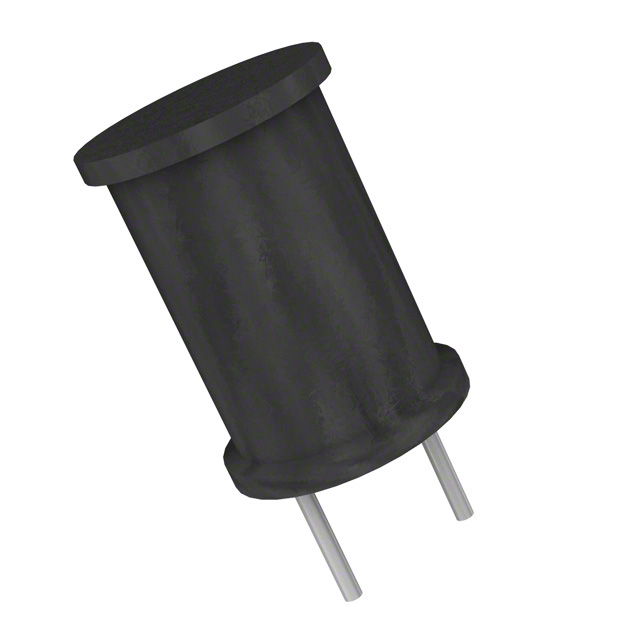

AIUR Series

Catalog

POWER INDUCTORS - LEADED IND 6.80 UH 2.300 A 35.00 MOHM

Part	Q @ Freq [custom]	Q @ Freq [custom]	Material - Core	Height - Seated (Max) [Max]	Height - Seated (Max)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	DC Resistance (DCR) [Max]	Shielding	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Current - Saturation (Isat)	Type	Current Rating (Amps)	Tolerance	Inductance Frequency - Test	Frequency - Self Resonant	Height - Seated (Max) [Max]	Q @ Freq	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)	Height - Seated (Max) [Max]

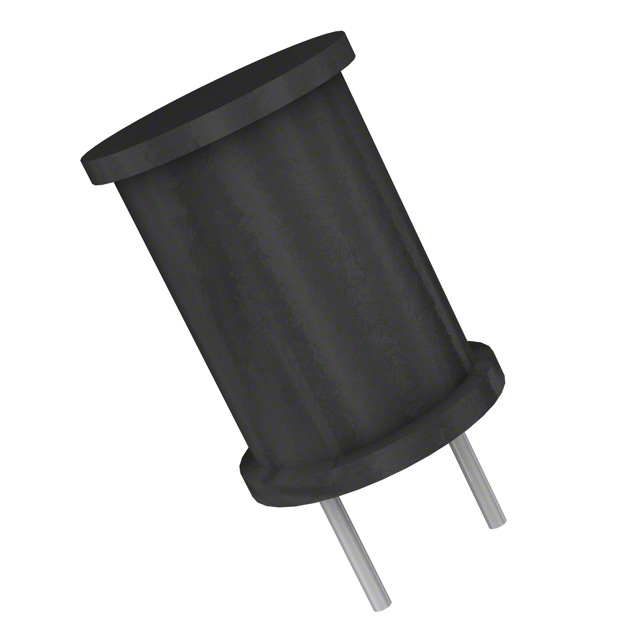

Abracon LLC AIUR-03-6R8M	7.96 MHz	20	Ferrite	0.472 in	12 mm	Through Hole	85 °C	-25 °C	6.8 µH	35 mOhm	Unshielded	Radial Vertical Cylinder	9 mm	0.354 in	3.7 A	Drum Core Wirewound	2.3 A	20 %	7.96 MHz	29 MHz

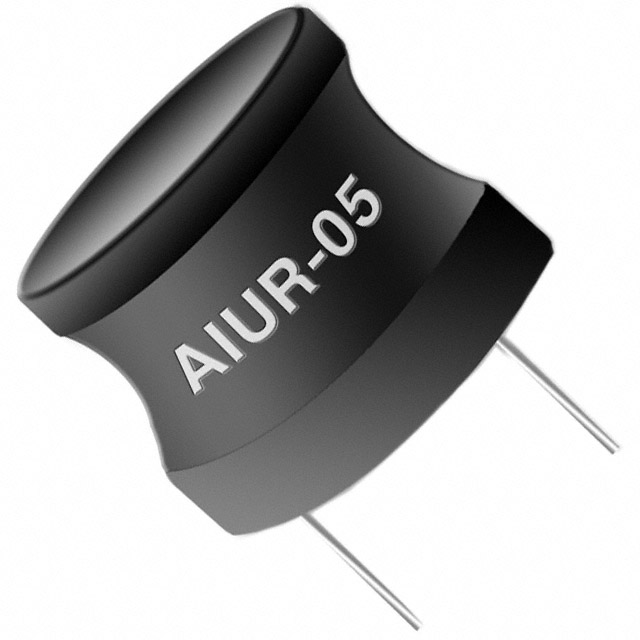

Abracon LLC AIUR-05-330K			Ferrite	0.354 in		Through Hole	85 °C	-25 °C	33 µH	92 mOhm	Unshielded	Radial Vertical Cylinder	8.5 mm	0.335 in	1.3 A	Drum Core Wirewound	1 A	10 %	2.52 kHz	10 MHz	9 mm	2.52 kHz 10
Abracon LLC AIUR-02H-220K			Ferrite	0.472 in	12 mm	Through Hole	125 °C	-40 C	22 µH	65 mOhm	Unshielded	Radial Vertical Cylinder	8.5 mm	0.335 in	2.4 A	Drum Core Wirewound	1.4 A	10 %	1 kHz			2.52 MHz 20
Abracon LLC AIUR-11-330K			Ferrite			Through Hole	85 °C	-40 C	33 µH	66 mOhm	Unshielded	Radial Vertical Cylinder	9.53 mm	0.375 "	2.3 A	Drum Core Wirewound	1.6 A	10 %	1 kHz				0.45 "	11.43 mm

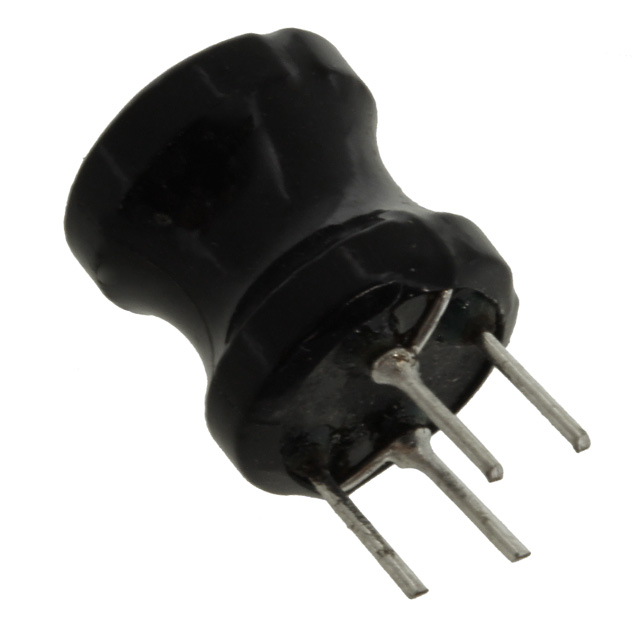

Abracon LLC AIUR-08-390K			Ferrite			Through Hole	85 °C	-25 °C	39 µH	73 mOhm	Unshielded	Radial Vertical Cylinder	11 mm	0.433 "		Drum Core Wirewound	2.7 A	10 %	2.52 MHz				0.433 in	11 mm
Abracon LLC AIUR-16-682K			Ferrite	0.374 "		Through Hole	85 °C	-25 °C		17 Ohm	Unshielded	Radial Vertical Cylinder	7 mm	0.276 in	64 mA	Drum Core Wirewound	60 mA	10 %	10 kHz		9.5 mm
Abracon LLC AIUR-02HL-331K			Ferrite	0.472 in	12 mm	Through Hole	85 °C	-25 °C	330 µH	620 mOhm	Unshielded	Radial Vertical Cylinder	8.5 mm	0.335 in	780 mA	Drum Core Wirewound	390 mA	10 %	790 kHz			20 790 kHz

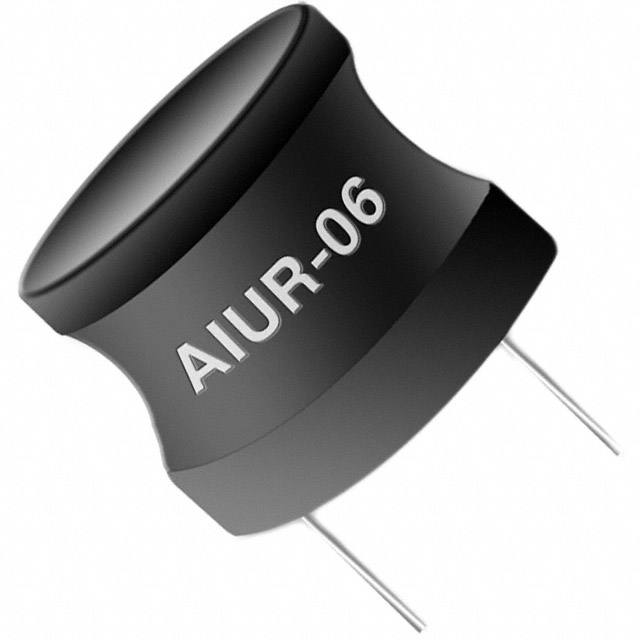

Abracon LLC AIUR-06-150K			Ferrite			Through Hole	85 °C	-25 °C	15 µH		Unshielded	Radial Vertical Cylinder	12.7 mm	0.5 "	7.1 A	Drum Core Wirewound	4.4 A	10 %	1 kHz		0.71 "				40 mOhm	18.03 mm

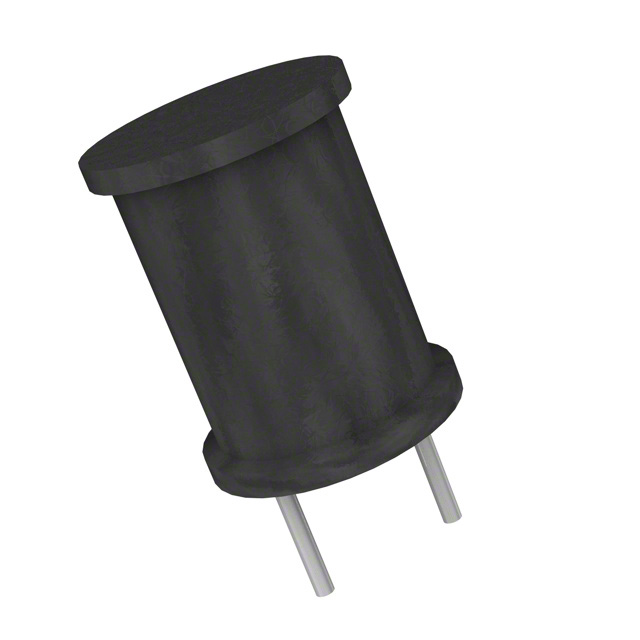

Abracon LLC AIUR-04-182J	252 kHz	40	Ferrite			Through Hole	85 °C	-25 °C	1.8 mH	9 Ohm	Unshielded	Radial Vertical Cylinder	8.5 mm	0.335 in	100 mA	Drum Core Wirewound	100 mA	5 %	252 kHz	1 MHz			0.441 in	11.2 mm
Abracon LLC AIUR-09-471K			Ferrite			Through Hole	85 °C	-55 C	470 µH	1.5 Ohm	Unshielded	Radial Vertical Cylinder	10 mm	0.394 in		Drum Core Wirewound	570 mA	10 %	1 kHz		0.256 in					6.5 mm
